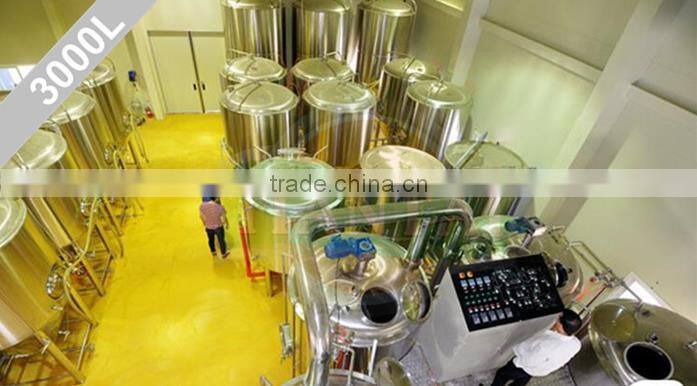

3000l Beer Manufacturing Plant for Small Brewery

Microbrewery System

Introduction

Microbrewery or minibrewery is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned. Such breweries are generally characterized by their emphasis on flavor and brewing technique. We offer a Microbrewery (mini brewery) with the productivity of 1000L (10 hl) to 5000L (50hl) per brew. The service includes: complete set of microbrewery equipment, installation turn key, recipes and technology of branded beers, staff training and more. Microbrewery comes complete "turnkey" The performance of your Microbrewery (Brewery and mini brewery), if necessary, can be increased in the future.

Specification

Configuration

Malt Milling Unit

• Particle adjustable rolling crusher for dry or wet milling
•  Flexible or steel auger or a bucket type conveyor to directly lift the milled grain to mash tun

Brewhouse Unit

•  Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
•  Hot water tank and cold water tank for optional in special combinations
•  Infusion or decoction brewing methods are designed exactly
•  Stainless steel cladding is even the unique because of easy maintenance and clean
•  Two stages or single stage heat exchanger for wort cooling
•  Completely stainless steel integrated work platform
•  Sanitary and efficiency wort pump
•  All pipings, pipes maniford and fittings

Fermentation Unit

•  Standard stainless steel conical cylindrical fermentation tanks
•  Single, double, triple or more size as brewhouse is common used in commercial breweries
•  Tanks quantity is exactly calculated by fermentation cycle for various beers
•  Roof walkway is for special request
•  All manhole, valves, pressure gauges, fittings etc are included

Beer Filter Unit

•  Large plate-Frame or Candle type DE (diatomite earth) filter is used for clarify the beer

Bright Beer Tank Unit

•  Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
•  Single,double size or more as fermenter is common used
•  Tanks quantity is exactly calculated for various beers and the function
•  All manhole, valves, stone, gauges, fittings etc are included

Cooling Unit

•  Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
•  Efficiency chillers or refrigerators with fryon to supply cooling energy
•  Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
•  All pipes, fitting, insulation materials are included

Controlling Unit

•  Electrical controlling cabinet with temperature, on-off controlling for brewhouse
•  Electrical controlling cabinet with temperature, on-off controlling for cooling parts
•  Temperature controller, thermocouple, solenoid valves etc are included
•  PLC with touch screen panel for special request

Beer Dispense

•  Semiauto or automatic bottling machine with rinsing, filling, capping, labeling etc
•  Semiauto or automatic canning machine
•  Flash pasteurizer or tunnel pasteurizer is available

Other Facilities

•  Portable CIP system for cleaning the tanks
•  Steam boiler for brewhouse heating
•  Water treatment for brew water
•  Oil free air compressor
•  Brewery lab instruments for beer quality test
