China Professional Manufacturer 4JXF4 Trolley Mechanism
- Dalian or any other ports in China
- T/T Credit Card
You May Like
-
China Supplier Sales 120JXL Trolley Mechanism
-
China Suppliers Wholesale 6JXF5 Trolley Mechanism
-
China Manufacturer Wholesale 185JXL Trolley Mechanism
-
China Factory Wholesale 7.5JXFtrolley Mechanism
-
Hot China Products Wholesale 11JXF10 Trolley Mechanism
-
Wholesale China Factory 15JXF16 Trolley Mechanism
Product Details
| Place of Origin | Liaoning, China | Brand Name | SYM, SCM | |
| Model Number | 95JXL2, 4JXF4, 120JXL, 6JXF5-07 |
Product Description

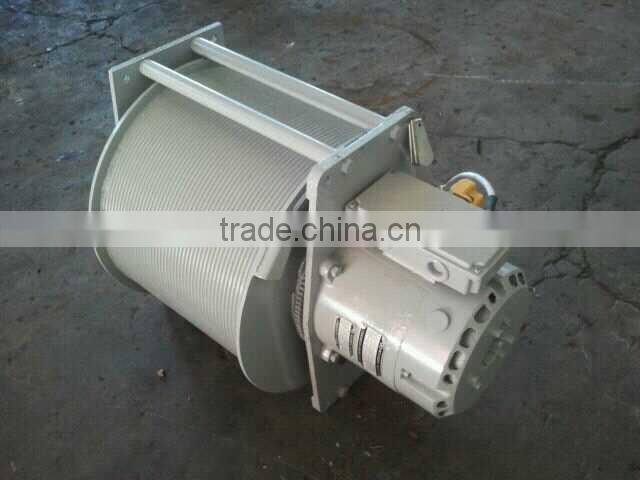

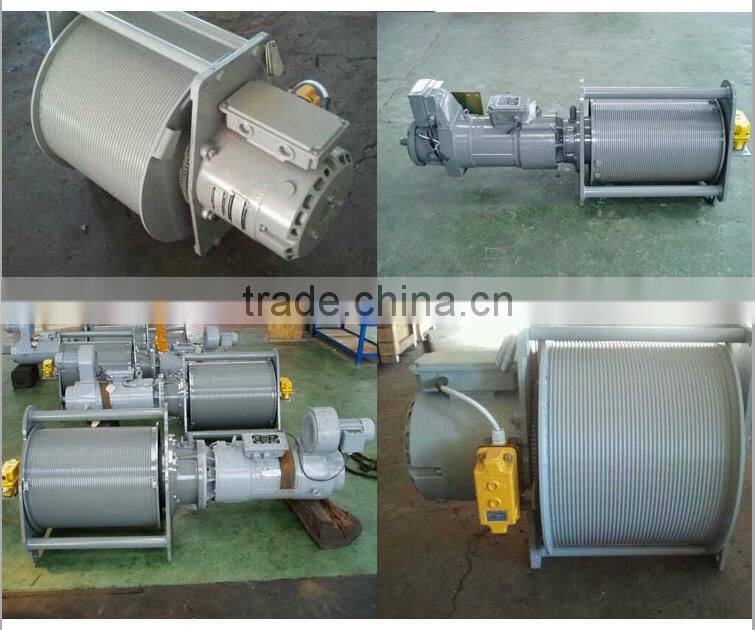

Trolley mechanism
JXL(JXF) series trolley mechanism
The JXL series trolley mechanism is a self-designed new product based on the advanced foreign technologies.National patented product: patent:ZL 2006 2 0036472.3 planetary drive winch.This series mechanism consists of torque motor,semi-concealed planetary reducer, winding drum, rack and so on with features of stable startup and braking, high transmission efficiency, low noise, compact structure, safe and reliable braking, accurate positioning, beautiful external appearance, etc.This series mechanism can be equipped with variable frequency motor and corresponding electrical control system to constitute JXF series frequency control trolley mechanism with features of zero-speed braking, smoother startup and speed change.
Product Code | (kW) Rated Power of the Motor KW | (N•m) Rated Stalling Torque of the Motor | (N) Rated Single Rope Tension | (m/min) Trolley Speed | (m) Trolley Range | (mm) Nominal Diameter of wirerope | (t) Rated Hoisting Weight of Tower Crane
|
95JXL2 | / | 95 | 4500 | 0-58 | 60 | Φ7.7 | 8,10 |
4JXF4 | 4 | / |
|
|
|
|
|
120JXL | / | 120 | 5400 | 0-63 | 73 | Φ8 | 12 |
6JXF5 | 5.5 | / |
|
|
|
|
|
185JXL | / | 185 | 7100 | 0-65 | 75 | Φ9 | 16,18 |
7.5JXF8 | 7.5 | / |
|
|
|
|
|
11JXF10 | 11 | / | 10000 | 0-65 | 83 | Φ10 | 20,24 |
15JXF16 | 15 | / | 16000 | 0-62 | 85 | Φ13 | 25,32 |
18JXF25 | 18.5 | / | 25000 | 0-32 | 80 | Φ13 | 40,50 |
24JXF33 | 24 | / | 33000 | 0-25 | 80 | Φ16 | 64 |
