Wholesale china factory 120NM trolley mechanism
- 200 Set / Sets per Month
- Dalian or any other ports in China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | SYM | |
| Model Number | 4D3V2, 4D3V3,-07 |
Product Description

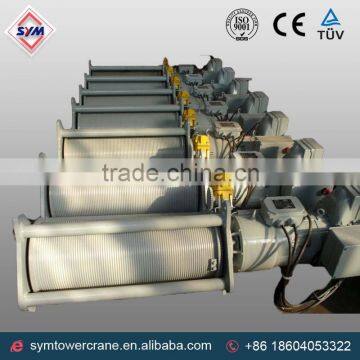

D3V Series Trolley Mechanism
The series products are designed and manufactured on the basis of the French Patain Company’s mature technologies. It is constituted with torque three-phase asynchronous motor, built-in planetary reducer, winding drum, tack and other components. The mechanism can get low, medium and high speed by voltage control and eddy current brake. The motor is equipped with an electromagnetic disk brake with features of smooth startop and braking, safe & reliable braking and accurate positioning. Thus the mechanism is most appropriate for Patain series tower cranes and can be used to replace the imported products.
Product Code | (N•m) Torque of the Motor | (N) Rated Single Rope Tension | (m/min) Trolley Speed | (m) Trolley Range | (mm) Nominal Diameter of wirerope | (t) Rated Hoisting Weight of Tower Crane |
4D3V2 | 75 | 2500 | 0~58 | 46 | Φ7.5 | 5,6 |
4D3V3 | 75 | 3500 | 0~58 | 56 | Φ7.5 | 6,8 |
5D3V4 | 95 | 4500 | 0~58 | 56 | Φ7.5 | 8,10 |
