4*2 20 Ton Dump Truck

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

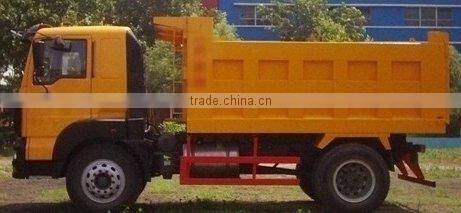

4*2 20 ton dump truck

As top cabin and truck manufacturer in China, we can assure you that our products are reasonable in price and good in quality.

BASIC SPECIFICATIONS TIPPER TRUCK DRIVING TYPE 4×2
Model	M1929D(YELLOW)
Engine	Engine model: Steyr WD615.50
	Type: Diesel, 4-stroke, direct injection engine
	6-cylinder in-line with water cooling, turbocharged & intercooled
	Maximum output according to DIN: 213 KW at 2200 rpm 290HP
	Displacement: 9.726 L
	Min. fuel consumption: ≤213 g/ kwh
	Exhaust criterion: EUR 2
Transmission	Model: Fuller RT-11509C
	Operating type: Manual shift with hydraulic assistant
	Type: With constant-mesh-gear synchronizer
	Constant-mesh: 9 forward & 1 reverse 9 speed shift
Axle	Front axle model: Steyr 6.5T Rear axle model: Steyr 13T
Steering system	Model: ZF8098, (Germany ZF , made in China)
Electrics	Operating voltage: 24V, negative grounded
Dimensions	Wheelbase(mm)	4000
	Cargo body size	12CBM
	Driver’s Cab size (mm):	203024902483
Weight in kg	Gross vehicle weight 19000
Performance	Maximum loading capacity 10000kg
	Fuel tank capacity (L) 300
	Maximum driving speed (km/h) 92
