Home > Products > Universal coupling > Y21LY rock drill breaker

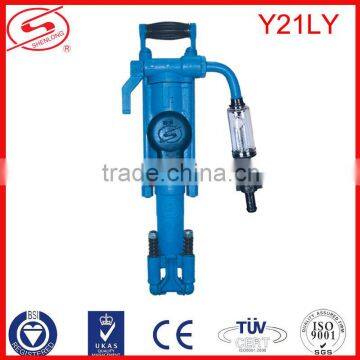

Y21LY rock drill breaker
- FUZHOU
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | rock drill jack hammer | |
| Model Number | Y21LY rock drill breaker | Type | Air Drill | |
| Average Air Consumption | 33l/s | Maximum Torque | 8n.m | |
| No-Load Speed | 200r/min |
Product Description
Specifications
Y21LY rock drill breaker1. Portability
2. High Impact Frenqency
3. High Working Efficiency
Item Name: Y21LY rock drill breaker
| products specifications | |
| item name | Y21LY Y21LY rock drill jack hammer |
| Weight | 20kg |
| Overall dimensions | 620mm |
| Stoke | 54mm |
| Cylinder Dia | 65 mm |
| Air pressure | 0.35-0.5mpa |
| Water pressure | 0.35-0.5mpa |
| Impact energy | 32J |
| Torque (at0.4MPa) | |
| Impact frequency | >31Hz |
| Air consumption | 33L/S |
| Drilling speed | |
| Max drilling depth | >5m |
| Air pipe inside dia | 19mm |
| Water pipe inside dia | 8mm |
| Drill bit size | 32-42mm |
| Drilll rod size | H22X108mm |
This machine is a kind of Hand-hold and Air-leg rock drill machinery. It can perform in solid rock or moderately hard rock.The rock drill is mainly used in quarries, coal mines and blasting for constructing roads in mountain areas,also in the capital construction for water conservancy works.
With hand-hold ,it can dill in omnibearing.This machine can drill downward with hand toward horizontal or acclive,when it is matched with air-leg model FT100.
