Home > Products > pneumatic tools > QJ15 Air Concreat
QJ15 Air Concreat
- fuzhou
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | shenlong | |
| Model Number | QJ15 | Type | Air Drill | |
| Average Air Consumption | 21.6l/s | Maximum Torque | 22n.m | |
| No-Load Speed | 200r/min |
Product Description
Specifications
QJ15 Air Concreat1. Powerful Drilling
2. High Durability
3. Easy Operation
4. Comparable performance
QJ15 Air Concreat
| products specifications | |
| item name | QJ15 |
| Weight | 15kg |
| Overall dimensions | 550mm |
| Stoke | 45mm |
| Cylinder Dia | 58 mm |
| Air pressure | 0.35-0.55mpa |
| Water pressure | 0.2-0.3mpa |
| Impact energy | 22J / 22n.m |
| Torque (at0.4MPa) | 9n.m |
| Impact frequency | >31.6Hz |
| Air consumption | 21.6L/S |
| Drilling speed | 80mm |
| Max drilling depth | >6m |
| Air pipe inside dia | 19mm |
| Water pipe inside dia | 8mm |
| Drill bit size | 32-48mm |
| Drilll rod size | H22X108mm |
illstruction

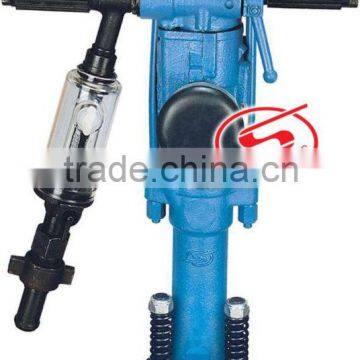

The rock drill has hand-hold and air-leg functions and has characteristic of low weight, reasonable structure, handy use and little air consumption. It is mainly used in small mines,small water conservancy ospecting and mining highway traffic and defence project facility. It is also suitable for drilling and blasting under various of rocks. When it is uesed to hand hold,it can blast blasthole downward. When it is matched with Model FT80 air leg ,it can drill blasthole at any direction angles. During drilling ,when it match with drill bit and other drill tools,drill bit diameter is 32-38mm,blast hole depth is 4m.
