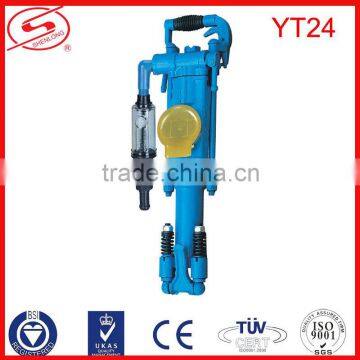

YT24 Drill Hammer
- fuzhou
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | shenlong | |
| Model Number | YT24 drill hammer | Type | Air Drill | |
| Average Air Consumption | 66.7L/S | Maximum Torque | 31n.m | |
| No-Load Speed | 250r/min |
Product Description
Specifications
YT24 drill hammer1. Powerful Drilling
2. High Durability
3. Easy Operation
item name: YT24 drill hammer
1. Stability
2. Perfect Leg-Drill Balance
3. Uniform High Drill Speed
4. Comparable performance
5. Adaptable to Long-Hole Drilling
6. Automatic Water-feed Device
| products specifications | |
| item name | YT24 drill hammer |
| Weight | 24kg |
| Overall dimensions | 678mm |
| Stoke | 70mm |
| Cylinder Dia | 70 mm |
| Air pressure | 0.4-0.63mpa |
| Water pressure | 0.2-03mpa |
| Impact energy | |
| Torque (at0.4MPa) | |
| Impact frequency | >31Hz |
| Air consumption | 66.7L/S |
| Drilling speed | 250mm |
| Max drilling depth | >6m |
| Air pipe inside dia | 19mm |
| Water pipe inside dia | 13mm |
| Drill bit size | 32-42mm |
| Drilll rod size | H22X108mm |
| FT140 Air leg | |
| Weight | 15.6kg |
| Length | 1687mm |
| Push stroke | 1250mm |
The drill hammer is a kind of high efficiency air leg rock drill machine.It is widely used for blasting holes and other drilling projects in a quarries, railway construction, water conservancy construction and defence project facility.
It is suitable for drill level or gradient holes in medium hard or hard rock(f=8-18).The drilling depth can be five meters. It can be matched with the FT140BD short air-leg or FT140B long air-leg to use in the basis of the width of rock.Also it can be fixed on drilling-vehicle or drilling-shelf.
To ensure the well lubricating.This rock drill may match FY200B oil reservior .
