Home > Products > Precision Planetary Gearbox > China Speed Reducer for Electric Motor 12V

China Speed Reducer for Electric Motor 12V

FOB Price

US$ 20 - 50 / Unit

1 Unit(Min. Order)

Port Ningbo
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Gearing Arrangement	Planetary	Output Torque	8.5Nm--680Nm
Rated Power	customized	Input Speed	4500RPM--3000RPM
Output Speed	5RPM--1500RPM	Place of Origin	Zhejiang, China
Brand Name	ARCMING

Product Description

Specifications

Lowest backlash(<3arcmin);high output torques high efficiency(96%);honed toothings;low noise(<65dB);easy motor mounting.

Packaging & Shipping

Packaging Detail:1. plastic bag+color box+wooden pallets 2.As the dients‘ requirement

Shipping Detail:Shipping by sea, air or express delivery are all available.

Product Description

Model	PLE50	PLE70	PLE90	PLE120-130	PLE140-160	Reduction Ratio	Number of Stage
Nominal output torque	25	67	160	340	950	3	1
	28	72	175	360	1030	4
	23	55	125	300	850	5
	18	40	100	250	700	6
	10	26	67	150	510	8
	25	67	160	340	950	9	2
	25	67	160	340	950	12
	25	67	160	340	950	15
	28	72	175	360	1030	16
	25	67	160	340	850	18
	28	72	175	360	1030	20
	28	72	175	360	1030	24
	23	55	125	300	850	25
	23	55	125	300	850	30
	28	72	175	360	1030	32
	18	40	100	250	700	36
	23	55	125	300	850	40
	18	40	100	250	700	48
	10	26	67	150	510	64
	28	72	175	360	1030	60	3
	28	72	175	360	1030	64
	28	72	175	360	1030	72
	28	72	175	360	1030	80
	25	67	160	340	950	90
	28	72	175	360	1030	100
	28	72	175	360	1030	120
	28	72	175	360	1030	144
	23	55	125	300	850	150
	28	72	175	360	1030	160
	23	55	125	300	850	180
	23	55	125	300	850	200
	18	40	100	250	700	216
	28	72	175	360	1030	240
	28	72	175	360	1030	256
	18	40	100	250	700	288
	23	53	124	300	850	320
	18	40	100	250	700	384
	10	26	67	150	510	512

Model	Unit	PLE50	PLE70	PLE90	PLE120-130	PLE140-160	Number of Stage
Max radial torque	N	200	500	950	2000	6000
Max axial torque	N	200	600	1200	2800	8000
	Nm/arcmin	0.7	1.8	4.8	11	35
Max input speed(rpm)	1/min≤	10000	8000	6000	6000	6000
Rated input speed(rpm)	1/min	4500	4000	4000	3500	3000
Lifetime	h	> 20000
Running noise	db(A)	55	58	60	65	70
Full load efficiency	%	96					1-/1
		94					2-/2
		90					3-/3
		85					4-/4
Backlash	arcmin	<5	<3	<3	<3	<5	1-/1
		<10	<8	<8	<8	<10	1-/1
		<8	<5	<5	<5	<8	2-/2
		<12	<10	<10	<10	<12	2-/2
		<10	<8	<8	<8	<10	3-/3
		<15	<12	<12	<12	<15	3-/3
		<12	<10	<10	<10	<12	4-/4
		<20	<15	<15	<15	<20	4-/4
Weight	kg	0.37	0.90	2.30	6.00	19.00	1-/1
		0.45	1.10	2.70	8.00	24.00	2-/2
		0.55	1.30	3.10	10.00	29.00	3-/3
		0.66	1.50	3.60	12.00	34.00	4-/4

Detail

Advantages of Our Planetry Gearbox(regular) :

Our planetary gear is used for equipment with high performance. its charcters are low backlash, high efficiency, high input speed, high input torque, low noise and stable running performance. Moreover, in the design of structure and appearance,we make it light and small. It makes the motor run efficiently.It decreases load inertia and increases output torque.

Workshop

Quality control

QC / Technical Support
The QC department of us is fully equipped with all the necessary testing and inspection facilities. We also have experienced professional inspectors and Engineers guided by an ISO 9001:2000 certified quality management system.
QC Staff
14-20
Materials/Components
Some QC instruments and meters are sourced domestically, and some are imported form the Germany and Japan.
Procedures/testing details
All raw material and components are subject to rigid metallurgical tests and only qualified materials are used.
All components processed in every manufacturing stage are inspected and tested strictly.
100 percent inspection and testing is carried out before packing.
Inspection flow:
1. Packing checking: products quantity, packing method, packing mark, products putting.
2. Appearance checking: Put products at the place of 46cm from eyes, inspect with seeing, feeling plug gauge and graduated scale.
3. Machine performance inspection.
4. Electricity performance inspection.
5. Insides of products inspection.
6. Character and reliability testing: Life testing and Temperature test in operation

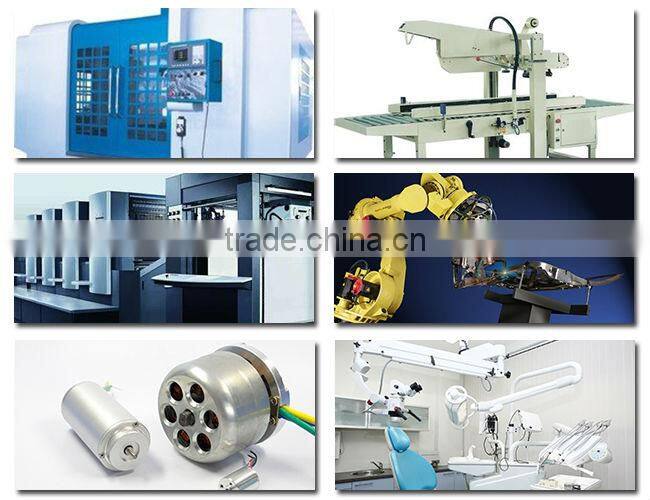

Application

adapted to various kinds of electric motor ,it can be widely applied to the fields of the numerical control machinery,cutting equipment,textile printing&dying ,packing machinery,plastic machinery,medical machinery,electric equipment,metallurgy,industrial robot,machine tools transform,aerospace industry etc.

FAQ

Why choose us

Company view

The patent certificate

Our purpose:

"faith-based science and technology, honesty and trustworthiness, innovation, perfect quality, Customer satisfaction" . We have diversified products to meet the needs of clients.

Welcome to contact us for more information or send us inquiry with details directly.
