Home > Products > Electronic Tools > FRANKEVER DT9605 low price digital multimeter

FRANKEVER DT9605 low price digital multimeter

FOB Price

Negotiable / Piece

1000 Pieces(Min. Order)

Port shanghai/ningbo
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	frankever
Model Number	DT9605	Measuring Current Range	AC Current: 40/400mA ±2.0%, 4A/10A ±2.5%
Measuring Voltage Range	DC Voltage: 40mV/400mV/4/40/400V ±0.5%, 1000V ±0.8%	Measuring Resistance Range	Resistance: 400Ω/4/40/400kΩ±1.0%, 4/40MΩ±2.0%
Measuring Capacitance Range	Capacitance: 40nF/400nF/40UF ±3.0%, 400/4000UF ±20%	Measuring Inductance Range	NO
Operating Temperature	normal	Dimensions	128 x 72 x 35mm

Product Description

FRANKEVER DT9605 Automotive Multimeter

Technology features

DC Voltage: 40mV/400mV/4/40/400V ±0.5%, 1000V ±0.8%

AC Voltage: 4/40/400V ±1.5%, 400mV/750V ±2.0%

DC Current: 40/400mA ±1.5%, 4A/10A ±2.0%

AC Current: 40/400mA ±2.0%, 4A/10A ±2.5%

Resistance: 400Ω/4/40/400kΩ±1.0%, 4/40MΩ±2.0%

Capacitance: 40nF/400nF/40µF ±3.0%, 400/4000µF ±20%

FI PEAK Voltages: 400V ±5.0%

Dwell Angle: ±2.0%

Frequency: 1Hz—10MHz ±0.1%

O2CROSS COUNT: 0-500Hz (Pper second) ±0.5%

RPM: 0-10000RPM ±0.5%

DIS(2)/CON(4) RPM: 0-10000RPM ±0.5%

Duty Cycle: 0.1%-99.9% ±2.0%,

Pulse Width-ms (Negative): 1-999ms ±5.0%,

Temperature: -50℃--200℃ (-58℉--392℉) ±75% ±3℃ (±0.75% ±5℉)

200℃--400℃ (392℉--752℉) ±1.5%, ±3℃, ( ±1.5%, ±5℉)

Dimension:185(H)x92(W)x52(D) mm

Description

Display: 4000 counts
Auto/Manual range
Digital multimeter & Automotive engine analyzer
Diode Check
Continuity Buzzer
Relative Measurement
True RMS AC+DC
Max/Min Measurement
Data Hold
Backlight
Auto Power Off, Can Disable
(Advanced Software Program for all Windows)
CE/LVD CAT Ⅲ 1000V

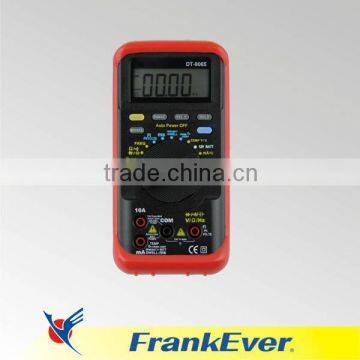

Multimeter pictures:

Payment Terms:

USD $1-$5000: EXW HangZhou

USD $5001-$15000: FCA

Above USD $15000: FOB Shanghai/Ningbo

FAQ

Question & Answer

1. What is your MOQ?

Generally,we make mass production based on MOQ 1000PCS, since our sub-supplier asked

1000 MOQ for avoiding wasting materials.

2. How about your delivery date?

Normally our delivery date is about 25-30days after payment received.

3. Can you supply sample for custome?

We can supply sample for customer's quality checking before placing new order to us, the delivery

cost will be charged on customer's account.

4. How about your price?

We will do our best to offer a good price for our customers, usually our price is worked out according

to the current exchange rate, probable order quantity, most important is your sincerity on cooperation!
