32-36 Core GYTS Stranded Loose Tube Armored Optical Fiber Cable

FOB Price

US$ 0.1 - 100 / Kilometer

6 Kilometers(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	FRANKEVER
Model Number	GYTS 32-36	Conductor Material	Other, single mode optic fiber
Insulation Material	PE	Jacket	PE
Number of Conductors	32-36	Application	Duct, Aerial

Product Description

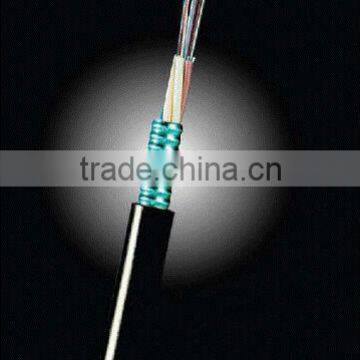

32-36 core GYTS Stranded Loose Tube Armored optical fiber cable

Product Description

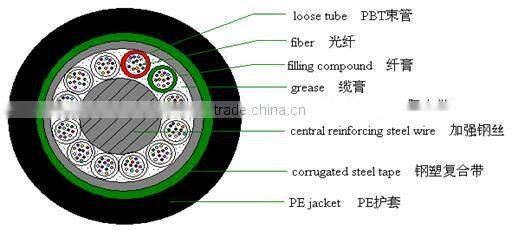

structure :For the strengthening of the middle wire, PBT fiber-circular casing around package, the cable core filled ointment, with water blocking outsourcing, steel-plastic composite armor with wrinkles, and PE jacket.

The main mechanical properties:

quantity of fibers	No of Fiber	unit of fiber core	Max. fiber No. in the loose tube	OD mm	weight kg/km	Allow tensile force long term/short term N	Allow squash Force long-term/ short-term N/100mm
GYTS 2-30	2-30	5	6	9.6	100	600/1500	300/1000
GYTS 32-36	32-36	6	6	10.2	115	600/1500	300/1000
GYTS 38-60	38-60	5	12	11.6	150	600/1500	300/1000
GYTS 62-72	62-72	6	12	12	170	600/1500	300/1000
GYTS 74-96	74-96	8	12	14.2	220	600/2000	300/1000
GYTS 98-120	98-120	10	12	15.4	260	600/2500	300/1000
GYTS122-144	122-144	12	12	17.6	300	600/2500	300/1000

Laying mode:Duct, Aerial

operating temperature:-40°C~+60°C

Application:Long distance and interoffice communication

features:

1.Reasonable design and precise control over the loose-tube fiber in the remainder of a long, fiber optic cable with excellent performance and temperature tensile properties.

2.Core cable filled ointment to ensure that the vertical water blocking effect.

3.Loose-tube (filled with rope) to strengthen the focus on the central pieces of SZ-cutter.

4.Double coated strip tide, and has lateral pressure.

Packaging & Shipping

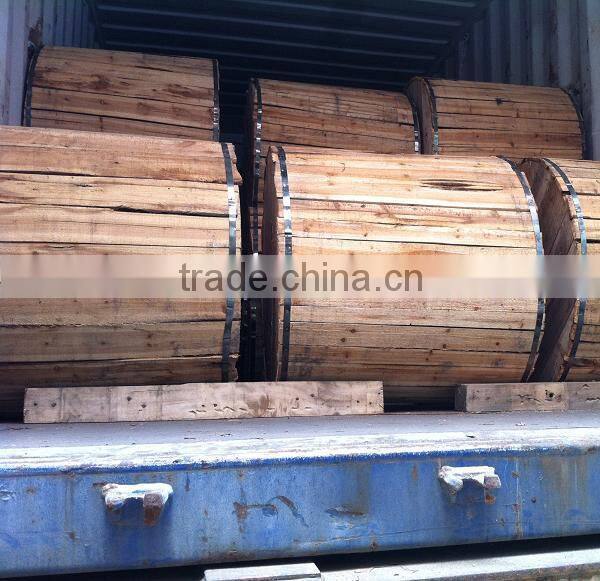

Wooden drum
