38-72 Core Optical Fiber Cable GYTA53 Stranded Loose Tube Armored Optical Fiber Cable

FOB Price

US$ 0.1 - 100 / Kilometer

6 Kilometers(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	FRANKEVER
Model Number	GYTA53 38-72cores	Conductor Material	Other, single mode optic fiber
Insulation Material	PE	Jacket	PE
Number of Conductors	38-72cores	Application	Direct burial

Product Description

38-72cores GYTA53 Stranded Loose Tube Armored optical fiber cable

Product Description

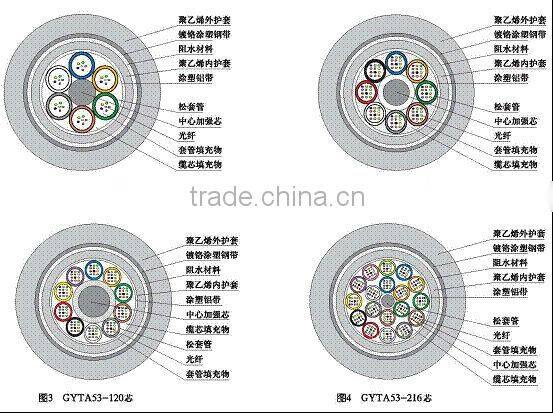

structure : For the strengthening of the middle wire, PBT fiber-circular casing around package, the cable core filled ointment, with water blocking the packet, aluminum-plastic composites with wrinkles Armored increase in the PE sheath, outsourcing steel-plastic composite armor with wrinkles equipment, and PE jacket.

The main mechanical properties

type (from 2 cores to higher)	No. of fibers	unit of fiber core	Max. fibers in loose tube	OD mm	Weight kg/km	Allow tensile force long term/short term N	Allow squash Force long-term/ short-term N/100mm
GYTA53 2-36cores	2-36	6	6	14	210	1000/3000	1000/3000
GYTA53 38-72cores	38-72	6	12	15.7	250	1000/3000	1000/3000
GYTA53 74-96cores	74-96	8	12	17.4	290	1000/3000	1000/3000
GYTA53 98-120cores	98-120	10	12	19	345	1000/3000	1000/3000
GYTA53 122-144 cores	122-144	12	12	20	420	1000/3000	1000/3000
GYTA53 146-216 cores	146-216	18	12	20	428	1000/3000	1000/3000

Laying mode:Direct burial

operating temperature:-40°C~+60°C

Application:Long distance and interoffice communication

features:

1.Reasonable design and precise control over the loose-tube fiber in the remainder of a long, fiber optic cable with excellent performance and temperature tensile properties.

2.Core cable filled ointment to ensure that the vertical water blocking effect.

3.Loose pieces of casing around the centres of the SZ-cutter.

4.Double tidal sheath structure, improve the cable-side pressure, impact resistance.

Packaging & Shipping

Wooden drum
