Home > Products > Communication Cable > 146-216 Core GYTY53 Stranded Loose Tube Armored Optical Fiber Cable

146-216 Core GYTY53 Stranded Loose Tube Armored Optical Fiber Cable

FOB Price

US$ 0.1 - 100 / Kilometer

6 Kilometers(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	FRANKEVER
Model Number	GYTY53 146-216 cores	Conductor Material	Other, single mode optic fiber
Insulation Material	PE	Jacket	PE
Number of Conductors	146-216 cores	Application	Direct burial

Product Description

Specifications

146-216 cores GYTY53 Stranded Loose Tube Armored optical fiber cable 1)Excellent quality(ISO9000:2001 approved). 2)Competitive p

146-216 cores GYTY53 Stranded Loose Tube Armored optical fiber cable

Product Description

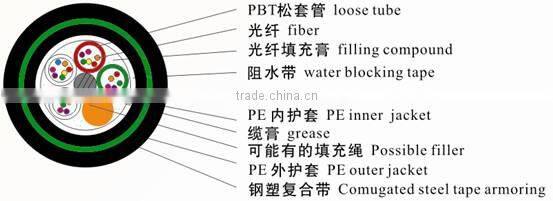

structure :For the strengthening of the middle wire, PBT fiber-circular casing around package, the cable core filled ointment, longitudinal band and PE kits, water blocking jacket, outsourcing wrinkles with steel-plastic composite armor, and PE jacket.

The main mechanical properties:

Quantity of fiber	No. of fibers	unit of fiber core	Max. fibers in loose tube	OD mm	Weight kg/km	Allow tensile force long term/short term N	Allow squash Force long-term/ short-term N/100mm
GYTY53 2-36	2-36	6	6	13.2	198	1000/3000	1000/3000
GYTY53 38-72	38-72	6	12	14.8	240	1000/3000	1000/3000
GYTY5374-96	74-96	8	12	16.2	260	1000/3000	1000/3000
GYTY53 98-120	98-120	10	12	17.8	320	1000/3000	1000/3000
GYTY53 122-144	122-144	12	12	19.6	380	1000/3000	1000/3000
GYTY53 146-216	146-216	18	12	19.6	388	1000/3000	1000/3000

Laying mode:Direct burial

operating temperature:-40°C~+60°C

Application:Long distance and interoffice communication

features:

1.Reasonable design and precise control over the loose-tube fiber in the remainder of a long, fiber optic cable with excellent performance and temperature tensile properties.

2.Core cable filled ointment to ensure that the vertical water blocking effect.

3.Loose pieces of casing around the centres of the SZ-cutter.

4.Double tidal sheath structure, improve the cable-side pressure, impact resistance.

Packaging & Shipping

Wooden drum
