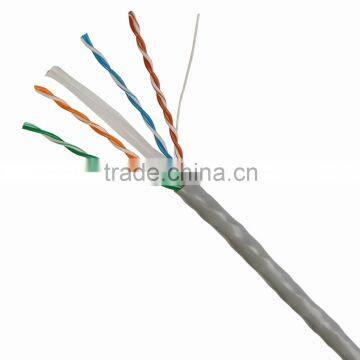

Frankever UTP/FTP/SFTP Lan Cable Pass Fluke Cable Made in China
- SHANGHAI or NINGBO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Frankever Foil Shielded Twisted Pairs AL-MG Braid PVC Jacket SFTP CAT7 Lan Cable
-
Frankever Foil Shielded Twisted Pairs AL-MG Braid LSZH Jacket SFTP CAT7 Lan Cable
-
Frankever High Quality PVC Jacket FFTP CAT7 Lan Cable
-
Frankever High Quality LSZH Jacket FFTP CAT7 Lan Cable
-
Frankever Best Price High Quality LSZH Jacket UTP CAT7 Lan Cable
-
Frankever Best Price High Quality Pvc Jacket UTP CAT7 Lan Cable
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Frankever | |
| Model Number | HX-NWCAT650 | Type | Cat 6 | |
| Number of Conductors | 4 |
Product Description
Product Name:

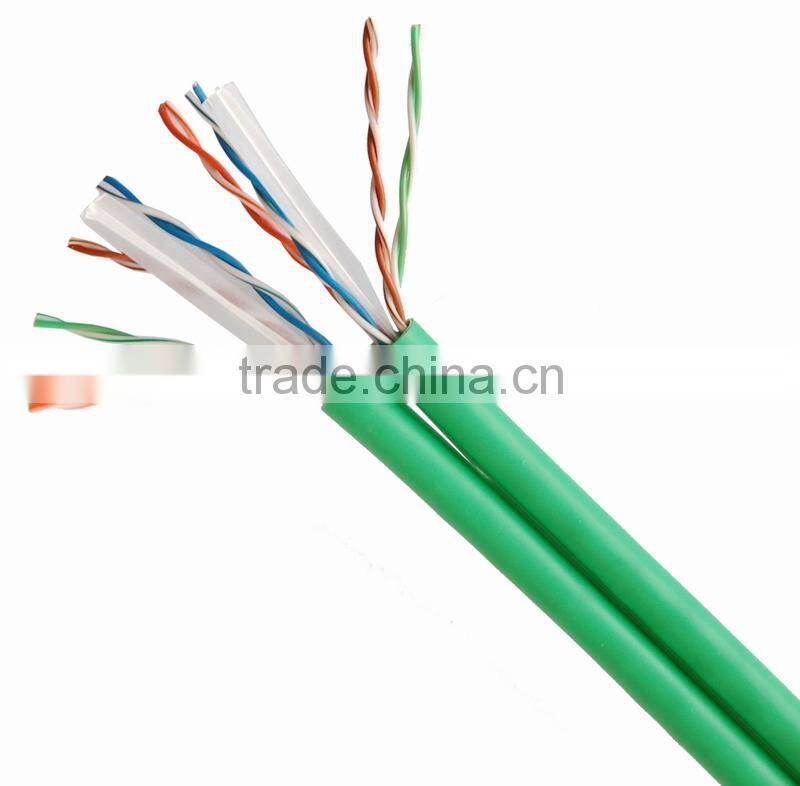

Frankever UTP/FTP/SFTP lan cable pass fluke cable
Specification:
CAT6 CABLE specification
ITEM | Description | ||
Conductor | material | Bare copper | |
Construction | 23AWG(1/0.57) | ||
O.D. | 0.57 mm±0.02mm
| ||
Insulation | Material | HD-PE | |
Thickness | 0.269MM±0.05mm | ||
O.D. | 1.03MM±0.03mm | ||
Elongation | Min.300% | ||
tensile | Min.1.22kg/m | ||
Twist Pair N/A | color | function | |
1. BlueaWhite / Blue | Unused Unused | ||
2. OrangeaWhite / Orange | Transmit Data + Transmit Data - | ||
3. GreenaWhite / Green | Receive Data + Receive Data - | ||
4. Brown White / Brown | Unused Unused | ||
Remark : Network cabling comprises of four pairs of wires, only two pairs are normally used. Despite this, all the pairs should always be wired to maintain the network specification. The cable pair colors, pair numbers and wire descriptions are shown in the table
| |||
jacket
| Material | PVC | |
Thickness | 0.615mm±0.1mm | ||
O. D . | 6.3mm±0.3mm | ||
Color | According to customer’s requirement | ||
Elongation | Min.125% | ||
tensile | Min.1.41kg/m | ||
Incore Terms:
USD $1-$5000: EXW
USD $5001-$10000: FCA
Above USD $10000: FOB
Certification:
Factory Introduction:
Our factory, HAIYAN HUXI WIRE&CABLE CO.,LTD ,was found in 1995,we specialize in designing and manufacturing cable products for 18 years with good quality and pretty competitive price,Especially the CAR WIRING KITS,SPEAKER CABLE,RCA CABLE,HDMI CABLE etc.And we do OEM for customers with reliable quality.More infos for our company,please link: and

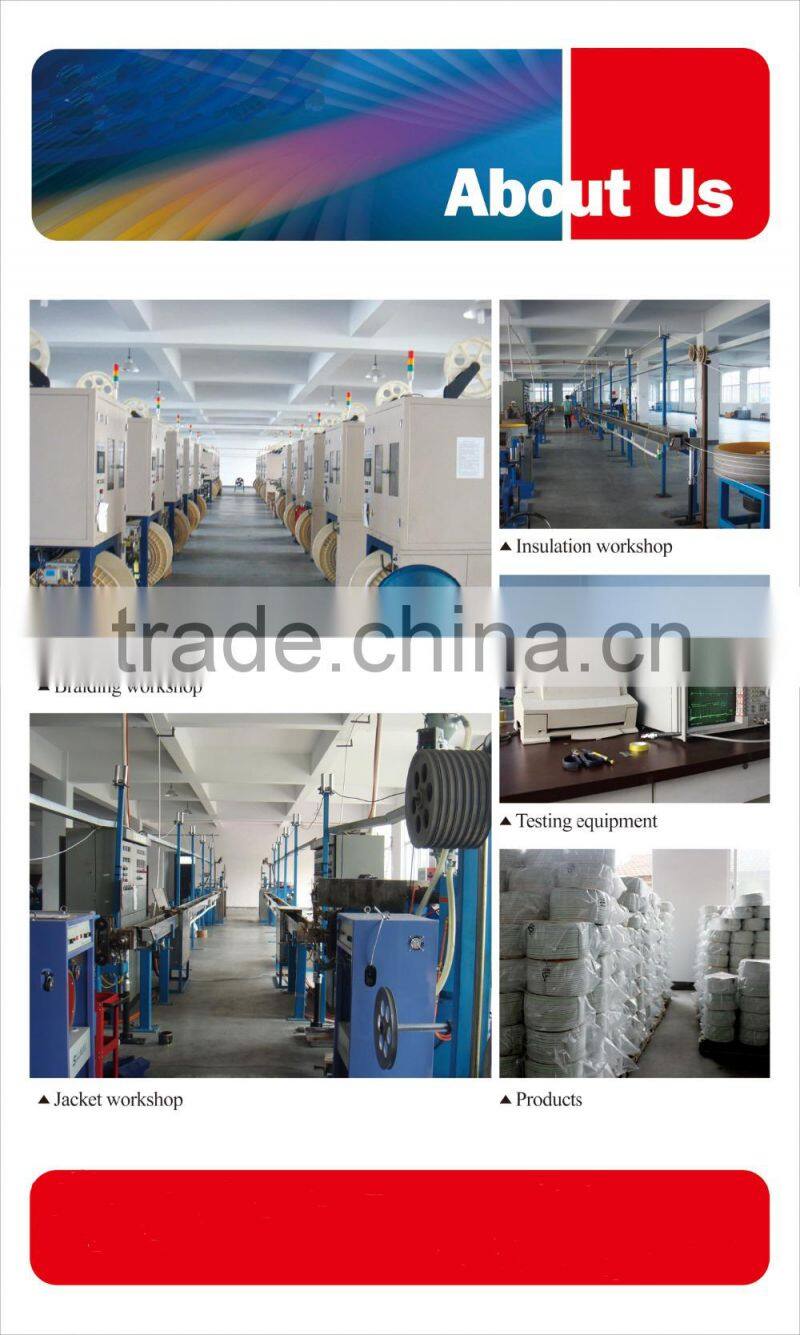

Workshop picture:
Question & Answer
1. What is your MOQ?
Usually our MOQ for normal spiral cable is 100 cartons, 305M in one carton.
2. How about your delivery date?
Normally our delivery date for spiral cable is about 30-35days.
3. Can you supply sample for custome
We can supply sample for customer's quality checking before placing new order to us, the delivery
cost will be charged on customer's account.
4. How about your price?
We will do our best to offer a good price for our customers, usually our price is worked out according
to the current exchange rate, probable order quantity, most important is your sincerity on cooperation!
