Home > Products > DC Axial Fan > PSC dc 24/48V Axial Brushless Cooling Fan 25489 With UL & CE for Reach-in Bottle Coolers and Refrigerated Display Cases

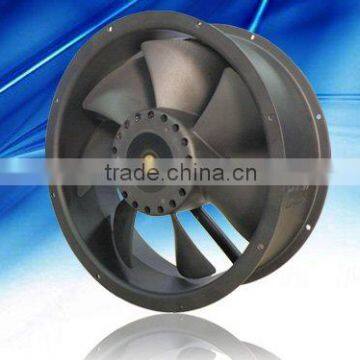

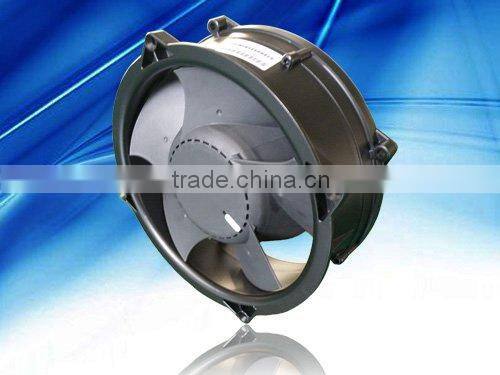

PSC dc 24/48V Axial Brushless Cooling Fan 25489 With UL & CE for Reach-in Bottle Coolers and Refrigerated Display Cases
- ShenZhen/HK
 - T/T L/C D/P D/A

You May Like
Product Details
| Electric Current Type | DC | Mounting | Other, heat exchanger/ventilation | |
| Blade Material | Other, thermoplastic PBT+15%GF(94V-0) | Place of Origin | Guangdong, China | |
| Brand Name | PSCMF, PSCMF | Model Number | 25489 | |
| Voltage | 24/48 V | Power | / | |
| Air Volume | 802 CFM | Speed | 2000 RPM | |
| Certification | CCC, CE, ROHS, UL | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
1.Reliable Quality & Reasonable Price2.Top Performance & Long Life
3.Energy-saving & Cost-effective
4.CE, UL
5.USA Brand
PSC dc 24/48V Axial brushless cooling fan 25489 with UL & CE for Reach-in Bottle Coolers and Refrigerated Display Cases -------PSCMF MOTOR & FAN INC.
Company profile
PSC Motor and Fan is an American company specialized in Thermal Solution since 1993, and its main products are DC/AC/EC Impeller, Centrifugal Fan, Axial Fan, Blower and CPU Cooler.
PSC has been a major supplier to HP Compaq, IBM, ATI, Cisco Systems, and Rockwell Automation, APC (American Power Conversion, SGI , Flextronics and other many well-known companies in the world.
Key Features
–HP-force
The new HP-force fans with their extremely high blower capacity of up to 950 m3/h and pressure build-up of up to 1200 pascals are capable of dealing with the extreme heat load. If needed, these fans can produce up to 100% more output under full load and they work with a much broader delivery bandwidth than current models. This makes them ideal for equipment and systems with a high density of components. Thanks to intelligent motor features, they can be individually adapted for any application.
The HP-force series is the most powerful product series on the market. HP-force stands for the highest innovation in motor technology, fluid mechanics and electronics. The one-of-a-kind power density of the products requires special attention to the application at the customer's facility.
– Compact dimensions
– Wide selection of models, dimensions and air performance levels
– Optimum efficiency and noise level due to well-engineered aerodynamic design of the fan blades
– High-efficiency, energy saving
– High reliability and service life
– Wide range of accessories, including guard grilles, basket guard grilles and wall rings
– Wide variety of monitoring and control functions enable customer oriented and demand-oriented fan operation
– Various protective mechanisms against ambient influences such as dust, humidity, water and salt
– The axial fan is dynamically balanced in two planes to DIN ISO 1940
– Numerous approvals, including VDE, UL, CUL and CE
– Applications: Ventilation, air-conditioning and refrigeration technology, automotive industry,
wind power and mechanical engineering/finishing equipment industry
Outline Drowing & base paremeter

size Ø254 X 89mm
| General Specifications |
| Motor: 4 pole brushless DC motor |
| Frame: Aluminum alloy. |
| Impeller : Thermoplastic PBT+15%GF(94V-0). |
| Bearing: Precision ball bearing/sleeve bearing. |
| Safety: CE |
| Storage temperature : -40°C to +75°C. |
| Operating temperature : -10°C to +70°C. |
Major Characteristic Parameters
| Model | Bearing System | Rated Voltage | Operating Voltage Range | Rated Current | Rated Speed | Maximum Air Flow | Maximum Static Pressure | Sound Level | Weight |
| Part NO. | B / S / F | V | V | A | RPM | CFM | mm-H2O | dBA | g |
| AGE25489_48H | B | 48 | 28.0~56.0 | 1.30 | 2000 | 802 | 19.2 | 62 | 1550 |
| AGE25489_24H | B | 24 | 12.0~27.6 | 1.35 | 1700 | 722 | 14 | 60 | 1550 |
| AGE25489_48M | B | 48 | 28.0~56.0 | 0.85 | 1600 | 680 | 13.2 | 58.5 | 1550 |
| AGE25489_24M | B | 24 | 14.0~27.6 | 1.60 | 1600 | 680 | 13.2 | 58.5 | 1550 |
| AGE25489_48L | B | 48 | 28.0~56.0 | 0.70 | 1300 | 552 | 10.7 | 54 | 1550 |
| AGE25489_24L | B | 24 | 14.0~27.6 | 0.90 | 1300 | 552 | 10.7 | 54 | 1550 |
