Home > Products > DC Axial Fan > Axial Industrial Fan

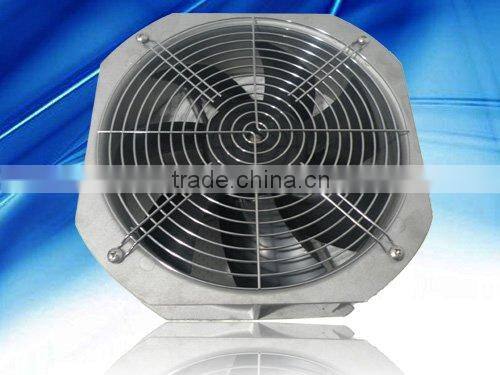

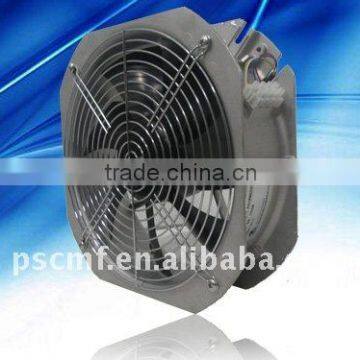

Axial Industrial Fan
Negotiable
/ Piece
200 Pieces(Min. Order)
- ShenZhen
You May Like
Product Details
| Electric Current Type | DC | Mounting | Other, heat exchanger/ventilations | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | PSCMF, PSCMF | Model Number | PF4828080HB2M | |
| Voltage | 24 V | Power | 57.6W | |
| Air Volume | 618 CFM | Speed | 2905 RPM | |
| Certification | Other, on process |
Product Description
Specifications
1.280x80mm DC Axial Fan2.Rated Voltage:24/48V
3.Rated Speed:3050/2950RPM
4.PSC-The No 2 DC Fan Supplier
280x80mm DC Axial Fan/Axial Fan MotoDC Axial Ventilator/Radial DC Axial Fan
- Size Ø280 x80mm
- Weight: 2.4kg
- Impeller: Metal Sheet
- Motor: DC brushless external rotor Motor
- Rotor: Black paint
- Insulation: Class A
- Safety: On process
- Operation Temperature:-25°C~+60°C
| Listed Model | Bearing System | Rated Voltage | Operation Voltage | Rated Current | Rated Power | Rated Speed | Air Flow | Air pressure | Noise Level | Available Features (Optional) | ||
| Part NO. | B / S / F | VDC | VDC | A | W | RPM | CFM | mmH2O | dBA | Tachometer Output | Autorestart | Speed Control |
| PF4828080HB2M | BALL | 48 | 36~5736~57 | 1.2 | 57.6 | 2,950 | 618 | 21.21 | 62 | / | / | / |
| PF2428080HB2M | BALL | 24 | 16~28 | 2.4 | 57.6 | 3,050 | 653 | 22.44 | 62 | / | / | / |
