Home > Products > DC Axial Fan > DC electrical axial Fan

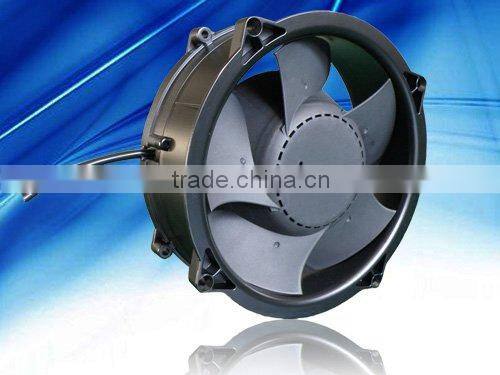

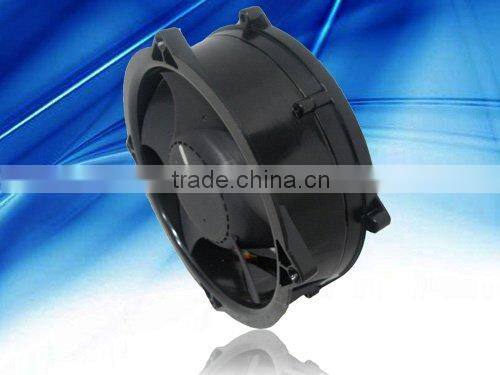

DC electrical axial Fan
Negotiable
/ Piece
200 Pieces(Min.Order)
- 5000 Carton / Cartons per Month
- ShenZhen
You May Like
Product Details
| Electric Current Type | Other, DC, DC | Mounting | Other, heat exchanger/ventilations, Other | |
| Blade Material | Other, Plastic, Plastic | Place of Origin | Guangdong, China | |
| Brand Name | PSCMF, PSCMF | Model Number | PF4820070LB2M | |
| Voltage | 48 V | Air Volume | 335 CFM | |
| Speed | 2900 RPM | Certification | Other, UL CE, UL CE |
Product Description
Specifications
1.20070mm Axial Fan2.Quality: High quality
3.Lead Time: Shortly
4.Rated Voltage:48/24V
5.Rated Speed:4600/0900RPM
20070mm Axial Fan/ Axial DC Fan/ Axial Fan
- size Ø200 x70mm
- Weight: 1.76kg
- Impeller: Plastic PA6.6(polyamide glass-fibre reinforced)
- Motor: DC brushless external rotor motor
- Rotor: Black paint
- Lead Wire: AWG#20 UL 1007
- Insulation: Class A
- Safety: UL.CE
- Operation Temperature:-25°c~+65 °c
| Listed Model | Bearing System | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air pressure | Noise Level | Available Features (Optional) | ||
| Part NO. | B / S / F | VDC | VDC | A | RPM | CFM | mmH2O | dBA | Tachometer Output | Autorestart | Pulse Width Modulation |
| PF4820070HB2M | BALL | 48 | 36~56 | 2.3 | 4,600 | 550 | 72.4 | 85 | |||
| PF4820070LB2M | BALL | 48 | 36~56 | 0.75 | 2,900 | 335 | 21.9 | 58 | |||
| PF2420070HB2M | BALL | 24 | 16~28 | 4.5 | 4,600 | 550 | 72.4 | 85 | |||
