Home > Products > DC Axial Fan > High Air Flow Mover Fan

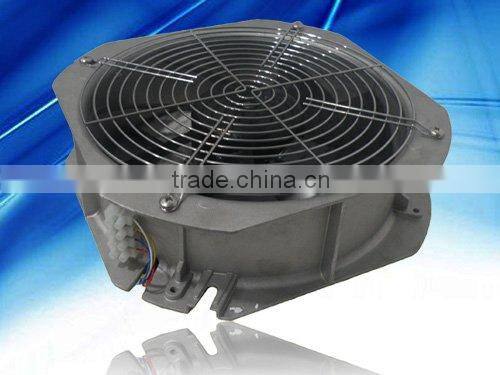

High Air Flow Mover Fan
                            US$ 60 - 70
                                                            / Piece


                                                200 Pieces(Min. Order)

                    - ShenZhen

You May Like
Product Details
| Electric Current Type | DC | Mounting | Other, heat exchanger/ventilations | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | PSCMF, PSCMF | Model Number | PF2428080HB2M | |
| Voltage | 24 V | Power | 57.6W | |
| Air Volume | 653 CFM | Speed | 3050 RPM | |
| Certification | Other, On process |
Product Description
Specifications
1.28080mm DC Axial Fan2.Quality: High quality
3.Lead Time: Shortly
4.Rated Voltage:48/24V
5.Rated Speed:3050/2950R
high air flow mover fan
- Size Ø280 x80mm
 - Weight: 2.4kg
 - Impeller: Metal Sheet
 - Motor: DC brushless external rotor Motor
 - Rotor: Black paint
 - Insulation: Class A
 - Safety: On process
 - Operation Temperature:-20°C~+60°C

| Listed Model  | Bearing System  | Rated Voltage  | Operation Voltage  | Rated Current  | Rated Power | Rated Speed  | Air Flow  | Air pressure  | Noise Level  | Available Features (Optional) | ||
| Part NO. | B / S / F | VDC | VDC | A | W | RPM | CFM | mmH2O | dBA | Tachometer Output  | Autorestart | Speed Control |
| PF4828080HB2M | BALL | 48 | 36~57 | 1.2 | 57.6 | 2,950 | 618 | 21.21 | 62 | / | / | / |
| PF2428080HB2M | BALL | 24 | 16~28 | 2.4 | 57.6 | 3,050 | 653 | 22.44 | 62 | / | / | / |
