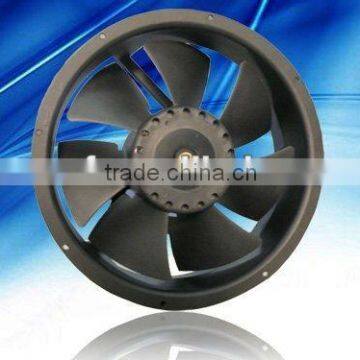

DC single-phase axial fan 254x89mm

FOB Price

USD $35 - $50 / Piece

200 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	Other, DC, DC	Mounting	Other, heat exchanger/ventilations, Other
Blade Material	Other, Plastic, Plastic	Place of Origin	Guangdong, China
Brand Name	PSCMF, PSCMF	Model Number	PF2425489HB2M
Voltage	24V/48 V	Air Volume	890 CFM
Speed	3100RPM	Certification	Other, UL CE, UL CE

1.DC External rotor axial fan
2.254x89mm
3.PSC-The No 2 DC Fan Supplier
4.Lead time:shortly
5.Insulation:Class B

DC External rotor axial fan

Weight: 1.5kg
Impeller: Thermoplastic PBT+15%GF(94V-0)
Motor: DC brushless external rotor motor
Frame: Die-cast Aluminum Painted Black
Lead Wire: AWG#22 UL 1007
Insulation: Class A
Safety: UL,CE
Operating Temperature:-20°C~+60°C

Listed Model	Bearing System	Rated Voltage	Operating Voltage	Rated Current	Rated Speed	Air Flow	Air pressure	Noise Level	Available Features (Optional)
Part NO.	B / S / F	V	V	A	RPM	CFM	mm-H2O	dBA	Tachometer Output	Autorestart	Speed Control
PF2425489HB2M	B	24	12~26.5	2.0	2000	725.0	18	62
PF2425489MB2M	B	24	12~26.5	1.5	1700	545.0	12	58
PF2425489LB2M	B	24	12~26.5	1.2	1400	421.7	8.17	56
PF4825489UB2M	B	48	28~56	1.9	3100	890.0	30	69
PF4825489HB2M	B	48	24~55.2	1.3	2000	725.0	18	62
PF4825489MB2M	B	48	24~55.2	1.0	1700	545.0	12	58
PF4825489LB2M	B	48	24~55.2	0.7	1400	421.7	8.17	56
