Home > Products > DC Axial Fan > 254x89mm DC Axial-Flow Fan

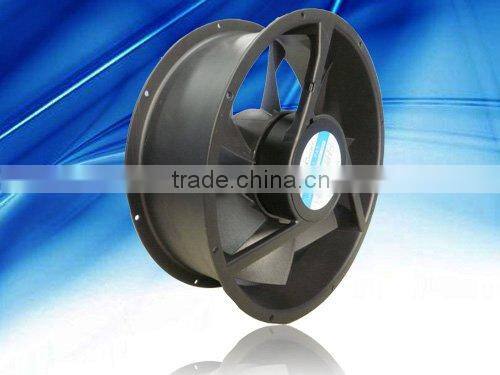

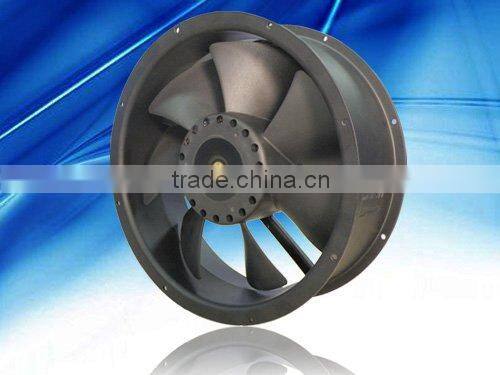

254x89mm DC Axial-Flow Fan
US$ 30 - 40
/ Piece
200 Pieces(Min. Order)
- ShenZhen
You May Like
-
DC Industrial Motor Fan
-
28080 Axial DC Plastic Industrail Impeller
-
PSC AC Axial Fan: 254mm x 89mm
-
PSC High Performance DC Cooling Fan Motor High CFM Cooling Fan 200*70mm for Telecommucation
-
Tried and Tested for You! PSC China Compact Axial Fan 280x280x80mm
-
PSC 48V Axial DC Impeller With CE & UL for Power Electronics and Reach-in Bottle Coolers
Product Details
| Electric Current Type | DC | Mounting | Other, heat exchanger/ ventilations | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | PSCMF | Model Number | AGE25489_24L | |
| Voltage | 24V | Air Volume | 552 CFM | |
| Speed | 1300 RPM | Certification | CE |
Product Description
Specifications
1.254x89mm DC Axial-Flow Fan2.Rated Voltage:48/24V
3.Rated Speed:2000/1700RPM
4.PSC-The No 2 DC Fan Supplier
254x89mm DC Axial-Flow Fan/Axial-Flow Fan/DC Axial Radial Fan/Axial DC Fan
General Specifications:
- Size: 254 x 89 mm
- Motor: 4 pole brushless DC motor
- Frame: Aluminum alloy
- Impeller : Thermoplastic PBT+15%GF(94V-0).
- Bearing: Precision ball bearing/sleeve bearing.
- Storage temperature : -40 °c ~ +75 °c
- Operating temperature : -10 °c~ +70°c
| Listed Model | Bearing System | Rated Voltage | Operating Voltage | Rated Current | Rated Speed | Air Flow | Air pressure | Noise Level |
| Part NO. | B / S / F | V | V | A | RPM | CFM | mm-H2O | dBA |
| PF2425489HB2M | B | 24 | 12~26.5 | 2.0 | 2000 | 725.0 | 18 | 62 |
| PF2425489MB2M | B | 24 | 12~26.5 | 1.5 | 1700 | 545.0 | 12 | 58 |
| PF2425489LB2M | B | 24 | 12~26.5 | 1.2 | 1400 | 421.7 | 8.17 | 56 |
| PF4825489UB2M | B | 48 | 28~56 | 1.9 | 3100 | 890.0 | 30 | 69 |
| PF4825489HB2M | B | 48 | 24~55.2 | 1.3 | 2000 | 725.0 | 18 | 62 |
| PF4825489MB2M | B | 48 | 24~55.2 | 1.0 | 1700 | 545.0 | 12 | 58 |
| PF4825489LB2M | B | 48 | 24~55.2 | 0.7 | 1400 | 421.7 | 8.17 | 56 |
