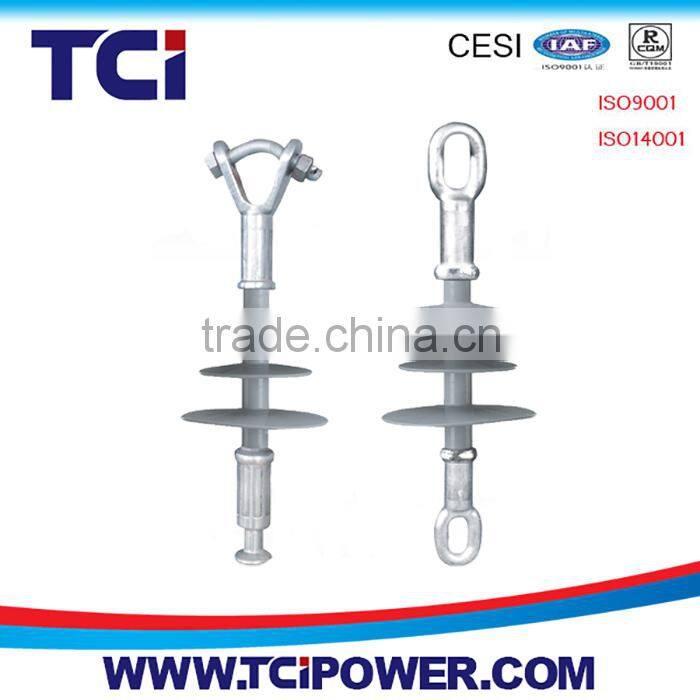

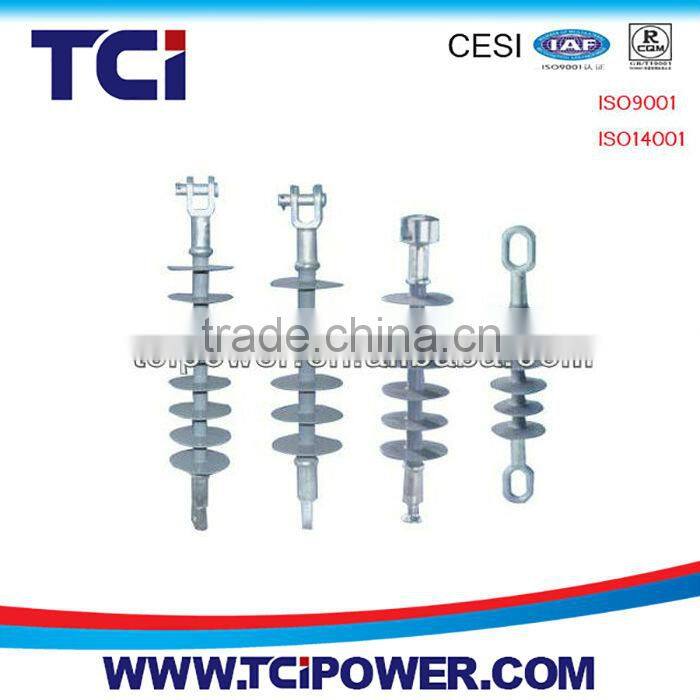

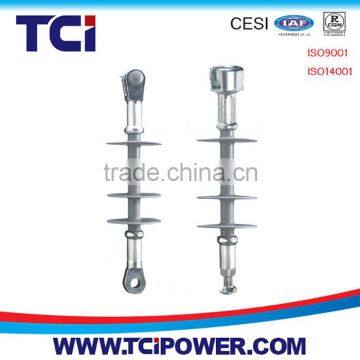

10KV 70KN Polymer Suspension Insulator W,T Coupling for Electric Fence

Service Condition:

Ambient temperature:              -40°C~+40°C

AC power supply frequency:      ≤100 HZ

Earthquake intensity:               ≤8

Altitude :                                  ≤1500 m

Maximum wind velocity:            ≤35 m/s

About the composite suspension insulator

Composite Suspension Insulator also known as “composite long rod insulator” The term ‘‘long rod’’ is actually used for a specific design of porcelain insulator which was first introduced in Germany in the 1920s as an alternative to cap-and-pin insulators (and also for critical ambient conditions, for example high pollution).

Composite long rod insulators benefit from the manufacturing possibilities ofthe FRP (fibre reinforced plastic) rod, and in particular from the fact that FRP rods can be produced practically endlessly in one piece in lengths of up to 20 m which is not possible with conventional insulator materials such as porcelain and glass.

Composite long rod insulators are currently produced in lengths of 10–100 cm for low-voltage and medium-voltage network systems, and in lengths up to 10m and more for today’s UHV network systems

Advantages of composite insulator

1: Composite insulator has high strength, light weight. Can relieve stress, reduce the installation and     maintenance of towerof strength, save costs. Because the rod core with tensile strength is high so the composite insulator can be very handy.

2: It aging resistance, good. Composite insulator has good corrosion resistance,aging resistance, at 70 degrees Celsius is elastic, can be long - term work 20 degrees celsius.

3:It has the advantages of small volume, light weight. Because the composite insulator has the advantages of small volume, light weight, and the umbrella disk is flexible, not easy to damage,so it brings great convenience to the transportation, installation, maintenance

Specifications

1.certificated by IEC ANSI GB ISO9001

2.We can design and produce according to the drawings.

3.we supply insulators with reliable quality reasonable price and good service.

4.We attend 2007 Hannover exhibition, India electricity 2008 exhibition,2008 Hannover exhibition,2009 and 2010 Dubai Middle East electricity exhibition

Material:

1. silicon rubber, composite polymer

2. glass-fiber reinforced epoxy resin rod

3. hot-dip galvanized steel

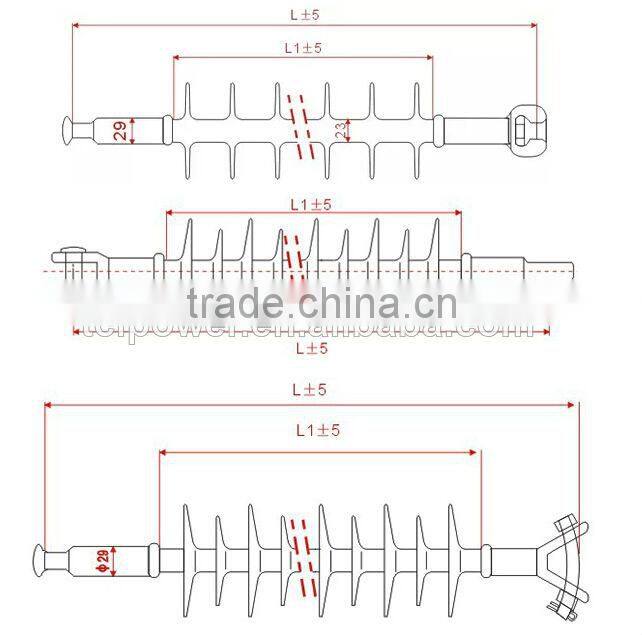

Technical drawings

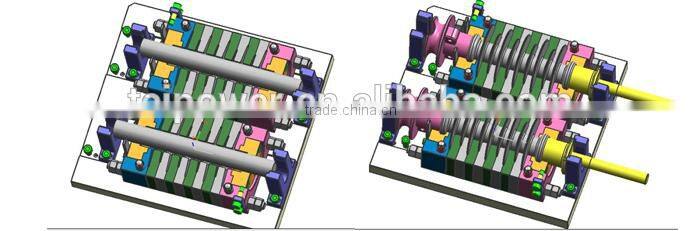

We can produce according to the following technolog

We can do better on what you can't see.

Quality is always the first for TCI.

                                   Packing service

                                              Certificates and test reports

 The insulators are made arrcording to ISO 9001; ISO14001;CESI etc. , assuring its quality conform with international standard and requirement.

About us

Dalian TuCheng International co., Ltd (TCI).

Business covering: manufacturing and exporting insulators, power fittings, bushings, cables and

accessories for power transmission lines and substations;

In addition to supply high-quality products to our customers, we also provide superior technical

assistance and services to meet their various needs. Our reliable quality, competitive prices and

good business practices have enabled us to establish successful business relationships with

companies from over 20 countries around the world.

                                                 A broad range of services

 Tips:

Since we (TCI) have many different models and types,providing exact model or detailed technical

specification in your inquiry will largely help us finding your a better solution within less time and

reducing your communication cost

If you can cooperate with us,we will be honored

Any questions from you are welcome and will be replied in 24 hours.
