6M Scissor Lift
- Chinese main ports
- T/T
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | SINOBOOM SCISSOR LIFT | |
| Model Number | GTJZ0608S | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Electric Motor | Power | 3KW | |
| Rated Loading Capacity | 230kg | Min. Lifting Height | 0m | |
| Max. Lifting Height | 7.8m | Table Size | 1.64*0.76*1.1m | |
| Overall Dimensions | 1.775*0.76*2.06m | Weight | 1328kg | |
| Certification | CE/ ISO/ ADR/ ARAMCO | Warranty | one year | |
| After-sales Service Provided | Overseas service center available |
Product Description
Scissor lift applies to indoor and outdoor flat ground conditions. It provides users reliable safeguard according with CE standard. Hydraulic elevated work platform is the electrical self-propelled work platform with low-noise and non-pollution. The spacious platform and great load capacity ensure widely usage.
Technical parameters

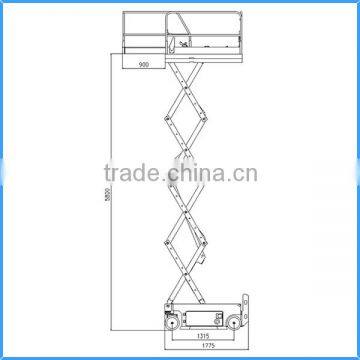

Models | GTJZ0608S | |
Measurements | Metric | US |
Dimensions | ||
Platform height max. | 5.8 m | 19 ft |
Working height max. | 7.8 m | 25 ft |
Platform extended | 0.9 m | 3 ft |
Length-stowed | 1.775 m | 5 ft 8 in |
Width-stowed | 0.76 m | 2 ft 5 in |
Heigh-stowed | 2.06 m | 6 ft 8 in |
Ground clearance | 0.07 m | 3 in |
Wheelbase | 1.315 m | 4 ft 3 in |
Size of platform (L*W*H) | 1.64 m *0.76 m *1.1 m | 5 ft 4 in *2 ft 5 in *3 ft 6 in |
Productivity | ||
Max.pPlatform occupancy | 2 | 2 |
Lift capacity | 230 kg | 507 lbs |
Lift capacity-extension deck | 120 kg | 265 lbs |
Driving speed-stowed | 0~4 km/h | 0~2.5 mph |
Driving speed-raised | 0~0.8 km/h | 0~0.5 mph |
Gradeability | 30% | 30% |
Turning radius-inside | 0 m | 0 ft |
Turning radius-outside | 1.48 m | 4 ft 9 in |
Raise/ Lower speed | 18/ 25 s | 18/ 25 s |
Controls | Proportional | Proportional |
Drives | Dual front wheel | Dual front wheel |
Brakes | Dual rear wheel | Dual rear wheel |
Tire size(solid non-marking) | 305 mm * 115 mm | 12 in * 5 in |
Power | ||
Power source | 24V DC (4*6V, 225Ah batteries) | 24V DC (4*6V, 225Ah batteries) |
Volume of hydraulic system | 18 L | 4.76 gal |
Power | 3 KW | 3 KW |
Weight | ||
Indoor | 1328 kg | 2928 lbs |
Standards compliant | CE/ISO/ADR/ARAMCO | CE/ISO/ADR/ARAMCO |
