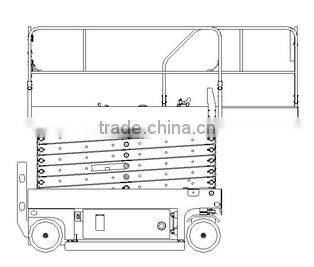

8M Scissor Lift Aerial Work Platform With 450kg Lift Capacity

GTJZ0812 Self-propelled hydraulic scissor lifts are mostly applied to flat indoor or outdoor. The body is pleasing to eye and flexible to operate. The main engine can travel and turn automatically. It features imported hydraulic components, explosion-proof pipe unit and emergency descending switch; hydraulically driven ascending, descending and travelling function; low in noises and free of air pollution; durable, chip-free, skid-proof and traceless tires without scratching the ground; optimized product control mode and procedure with the premise of safety, bringing much more humanized operation.

Technical parameters

Models	GTJZ0812
Dimensions
Platform height max.	26.6 ft (8.1 m)
Working height max.	33 ft (10.1 m)
Platform extended	3 ft (0.9 m)
Length - stowed	7.84 ft  (2.39 m)
Width - stowed	3.77 ft (1.15 m)
Height - guardrail folded	6.43 ft (1.96 m)
Height - guardrail unfolded	7.7 ft (2.35 m)
Height - guardrail fixed	7.7 ft (2.35 m)
Wheelbase	6 ft (1.85 m)
Ground clearance	0.33 ft (0.1 m)
Platform size (L*W*H)	7.4  ft * 3.77 ft * 3.6 ft   (2.25 m*1.15 m*1.1 m)
Productivity
Max. platform occupancy	2 (indoor), 2(outdoor)
Lift capacity	992 lbs (450kg)
Driving speed - stowed	0~3.2 km/h
Driving speed - raised	0~0.8 km/h
Gradeability	25%
Turning radius - inside	0 ft (0 m)
Turning radius - outside	7.7 ft (2.35 m)
Raising / Falling speed	30s~35s /35s~40s
Controls	Proportional
Drive &steer model	2WD, front -wheel
Brake	2 rear-wheel
Tire	380 mm * 125 mm/solid
Power
Power source	24V DC (4*6V, 225Ah batteries)
Hydraulic system tank vol.	18 L
Power	3 KW
Weight
overall weight ( indoor/outdoor )	5490 lbs (2490 kg)
Standards Compliance	CE/ ISO/ ADR/ ARAMCO
