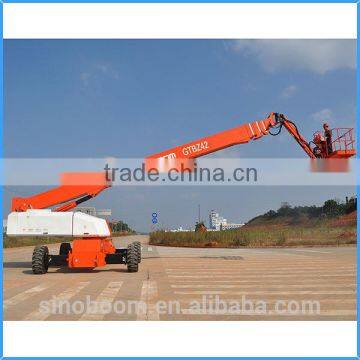

Building Cleaning Equipment Mobile Hydraulic Lift Table
- Chinese main port
- T/T
You May Like
-
12M Hydraulic Scissor Lift Platform,self-propelled Scissor Aerial Lift,move Aerial Working Platform/scissor Lift
-
Mobile Scissor Platform Lift
-
Equipment Used for Workshop Telescopic Aerial Lift Tables
-
All Types Self-Propelled Hydraulic Mobile Scissor Lift Platform From 4m-16m
-
18M Folding Arm Hydraulic Lift Platform for Sale
-
Building Painting Equipment Mobile Hydraulic High Rise Work Platform
Product Details
| Place of Origin | Hunan, China | Brand Name | SINOBOOM | |
| Model Number | GTBZ42J | Lift Mechanism | Telescoping Lift | |
| Lift Drive / Actuation | Hydraulic | Power | 60KW | |
| Rated Loading Capacity | 480kg | Min. Lifting Height | 0m | |
| Max. Lifting Height | 43.6m | Table Size | 2.44*0.91*1.14m | |
| Overall Dimensions | 13.1*2.49*3.05m | Weight | 22230kg | |
| Certification | CE/ISO/ADR/ARAMCO | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Mobile hydraulic lift table applies to shipbuilding, large steel structure building, construction, civil engineering and advertising industries, etc. This boom lift is safe and reliable. Designed with the concept of durability, solidity, and excellent performance, it can meet the need of extremely challenging operating conditions. Wide operating range, large load capacity and strong driving force are main characters of Telescopic Boom Lift,which employs innovative technology in designing, so that the product boasts high-level safety, reliability and comfortableness.
Technical parameters
Models | GTBZ42J | |
Measurements | Metric | US |
Dimensions | ||
Platform height max. | 41.6 m | 137 ft |
Working height max. | 43.6 m | 143 ft |
Horizontal reach max. | 24.38 m | 80 ft |
Length-stowed | 13.1 m | 43 ft |
Width-stowed | 2.49 m | 8 ft 2 in |
Height-stowed | 3.05 m | 10 ft |
Ground clearance | 0.65 m | 2 ft 1 in |
Wheelbase | 3.81 m | 12 ft 5 in |
Platform size (L*W*H) | 2.44 m*0.91 m*1.14 m | 8 ft*3 ft*3 ft 7 in |
Productivity | ||
Max. platform occupancy | 2 | 2 |
Lift capacity | 250 kg-unlimited;480 kg-limited | 551 lbs-unlimited;1058 lbs-limited |
Turntable rotation | 360° continuous | 360° continuous |
Platform rotation | 160° | 160° |
Drive speed-stowed | 0~4.4 km/h | 0~2.7 mph |
Drive speed-raised | 0~1.1 km/h | 0~0.7 mph |
Gradeability | 40% | 40% |
Turning radius-inside | 4.37 m | 14 ft 3 in |
Turning radius-outside | 6.81 m | 22 ft 3 in |
Turntable tailswing | 1.68 m | 5 ft 5 in |
Max. allowable slope | 3° | 3° |
Max. noise on normal use | 82 dB(A) | 82 dB(A) |
Drive & steer model | 4WD*4WS | 4WD*4WS |
Tire size/type | 385/65 - 22.5 16PR | 385/65 - 22.5 16PR |
Power | ||
Power source | Original Cummins/Perkins Engine | Original Cummins/Perkins Engine |
Furl tank capacity | 200 L | 52.83 gal |
Control voltage | 12 VDC | 12 VDC |
| Power | 60 KW | 60 KW |
Weight | ||
Overall weight | 22230 kg | 49009 lbs |
Standards Compliance | CE/ISO/ADR/ARAMCO | CE/ISO/ADR/ARAMCO |
The core configuration
Production Line
Product Inventory
Application
Worldwide Show
About Us
SINOBOOM is engaged in research, development, manufacturing, sale and service of aerial work equipment. There are four series of aerial work platforms, including articulated boom lift, telescopic boom lift, scissor lift and spider lift, with working height from 4M - 42M in full series and various types, we owns the proprietary core technology and 30 items of intellectual property.
