2013 New Design Mobile Aluminum Hydraulic Lift Platform for Sale
- Chinese main ports
- T/T
You May Like
-
Hot Selling Safe Reliable Hydraulic Mini Lifting Platform Lifting Elevator
-
Construction Building Lift Equipment Hydraulic Lifting Platform
-
Hydraulic Lifting Machinery Mobile Elevating Platforms for Sale
-
Aerial Equipment Scissor Lift Table,hydraulic Aerial Access Platforms,china Manufacturer Sale Hydraulic Aerial Platform
-
Self-propelled Hydraulic Movable Lift Platforms,mobile Hydraulic Arm Lift Platform,outdoor Telescopic Platform Lift for Sale
-
Hydraulic Arm Lift Work Platform Hydraulic Telescopic Aerial Lift Table
Product Details
| Place of Origin | Hunan, China | Brand Name | SINOBOOM | |
| Model Number | GTSZ30J | Lift Mechanism | Telescoping Lift | |
| Lift Drive / Actuation | Hydraulic | Power | 18.5KW | |
| Rated Loading Capacity | 200kg | Min. Lifting Height | 0m | |
| Max. Lifting Height | 30m | Table Size | 1.2*0.8*1.1m | |
| Overall Dimensions | 7.2*1.58*1.98m | Weight | 4500kg | |
| Certification | CE/ISO/ADR/ARAMCO | Warranty | ONE YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Mobile aluminum hydraulic lift platform is compact for storage, light in weight and easy to transport with excellent trafficability. Strong and powerful rubber tracks are used with track width and height adjustable. This product applies to indoors and complicated ground conditions. Left and right differential speed, sliding and turning; small turning radius; no restriction to working space; the equipment can work freely even in very narrow and limited space. Driven by dual power source: 220/400V power and diesel engine for option.
Technical parameters
Models | GTSZ30J | |
Measurements | Metric | US |
Dimensions | ||
Platform height max. | 28 m | 92 ft |
Working height max. | 30 m | 98 ft |
Horizontal reach max.(load:200kg) | 12 m | 39 ft 4 in |
Horizontal reach max. (load:80kg) | 14 m | 45 ft 9 in |
Length-stowed | 7.2 m | 23 ft 6 in |
Width-stowed | 1.58 m | 5 ft 2 in |
Height-stowed | 1.98 m | 6 ft 5 in |
Ground clearance | 0.31 m | 1 ft |
Max. ground clearance-outrigger expand | 1.26 m | 4 ft 1 in |
Platform size (L*W*H) | 1.2 m*0.8 m*1.1 m | 3 ft 9 in*2 ft 6 in*3 ft 6 in |
Size of support pedal | 0.31 m*0.22 m | 1 ft*7 in |
| Wireless remote control range | 100 m | 328 ft |
Produtivity | ||
Max. platform occupancy | 2 | 2 |
Lift platform | 200 kg | 441 lbs |
Turntable rotation | 440° | 440° |
Platform rotation | 180° | 180° |
Flying arm rotation | 180° | 180° |
Drive speed | 0~3 km/h | 0~1.9 mph |
Gradeability | 30% | 30% |
The slope gradient outrigger can support | 30% | 30% |
Load capacity of each pedal | 32 kn | 32 kn |
Grawler walking on the ground pressure | 4 kn/m^2 | 4 kn/m^2 |
Power | ||
Power source | Perkins engine + 220 V/400 V | Perkins engine + 220 V/400 V |
Hydraulic system capacity | 75 L | 19.81 gal |
Control voltage | 12 VDC | 12 VDC |
| Power | 18.5 KW | 18.5 KW |
Weight | ||
Overall weight | 4500 kg | 9920 lbs |
Standards Compliance | CE/ISO/ADR/ARAMCO | CE/ISO/ADR/ARAMCO |
Production Feature
1. Excellent performance: Light weight, small size, excellent adaption to the working site, e.g. field, indoors, outdoors narrow space and special conditions.
2. Easy operation: 328 ft (100 m) wireless remote control, very flexible to operate up and down.
3. High efficiency: When the product is unfolded, the outriggers level out automatically, reducing preparation time.
4. Advanced technology: Hydraulic dual-speed drive mode, imported gradual progress control system with proportional joystick, concentric roller telescoping technology.
5. High reliability: Service life is extended greatly by use of the built-in chain telescoping mechanism and drag chain; the boom is made of high-strength steel and titanium-aluminum alloy; the working funnel is made of aluminum alloy which is light in weight and good in stability.
6. Good safety: Several sets of emergency system and multiple interlocking protection system ensure the safety of operators.
Production Line
Product Inventory

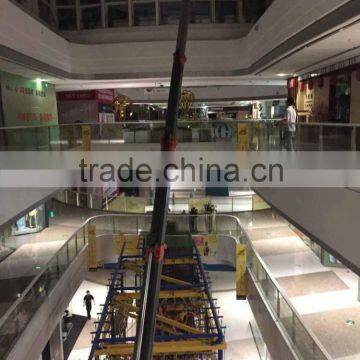

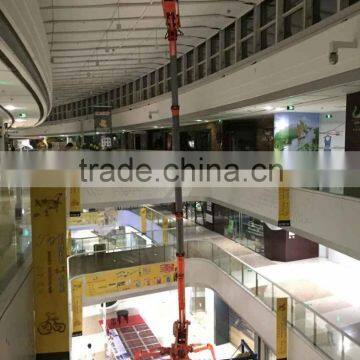

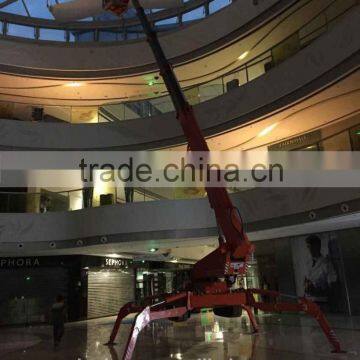

Application
Worldwide Show
About Us
Sinoboom is engaged in research, development, manufacturing, sale and service of aerial work equipment. There are four series of aerial work platforms, including articulated boom lift, telescopic boom lift, scissor lift and spider lift, with working height from 4M - 42M in full series and various types, we owns the proprietary core technology and 30 items of intellectual property.
Contact Us
Hunan Sinoboom Heavy Industry Co., Ltd.
No. 128, East Of Jinzhou Avenue, Jinzhou New District, Ningxiang County, Changsha, Hunan, China
Tel: 0086-731-87116222
Skype:
Why Choose Us
1. Provide a various kinds of aluminum alloy lift platform, which could meet customer's needs.
2. We could help customer choose the right model and also provide customization.
3. All electrical elements are used world famous brand.
4. Provide timely delivery,Sales engineers are ready to solve all problem.
5. Provide spare parts, worksite installation guidance and training operation.
1. Service concept: Exceed clients’ expectation.
2. Presale service: Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
3. In sale service: We provide free guidance of installation and debugging and free training of operation, care and maintenance.
4. After-sale service: One-year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine’s maintenance and reparations.
5. Quick responses: we have a complete service network, 400 free hotline services for 24hours and assist you to solve the problem in a short time.
6. Parts supply: we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
1. QTY?(set)
2. Purchase period?(in a month, two month, three months or others)
3. Delievery Time?(in a month, two month, three months or others)
4. Trade term? ( FOB/CIF to your nearest seaport)
5. Demand Working Height?
6. Demand Platform Size?
7. Platform load capacity?
8. Demand power source?(electric or hydraulic)
9. Demand drive motion?(2 wheel driving or 4 wheel driving)
10. Cooperation property?(dealer, agent, end-user, including company or personal use )
11. Application field?(construction, shipyard, industiral, airport, municipal garden
or others)
We'll give you an exact quotation based on your demand after confirming the above information.
