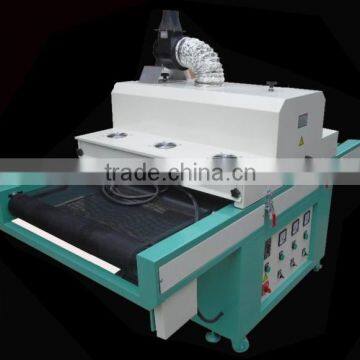

UV curing machine UV curing drying hot drying machine TM-600UVF

 UV Curing Machine TM-600UVF   be fit to  UV curing drying ,for plastic,Paper ,pvc, PP Sheets, wooden floor board ,UV POLISHING , PVC,PET , PCB  after printing UV printing, electronic product UV sparying ,  UV pritning, packing products UV drying .

 UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics

1.  Model  NO. TM-600UVF
2. UV Drying  products:600*100*2000mm
3.Conveyor belt size:L2000* W600MM
4.UV Lamp power:2PCS*3KW /380V
5.Total wattage:7.5KW
6. Wind fan wattage: 500W/380V
7.motor wattage:1000W/1P/380V
8. Conveyor speed:0~10m/min
9.       Speed change ways:Continue
10.     UV Machine  Dimension:L*W*H2020*800*1350
11.      Weight:350kg

Free Fitting :
TWO pcs UV lsmp(3KW)

Testing Please provide:
1. 380V power supply.

Quality Control

we will do a test before delivery, for instance, let the machine work without products so that checkout the performance,ensuring the quality.

We are top in manufacturing:

pad printer ,screen printer , hot foil stamping machine heat transfer machine  and UV Curing machine for 25 years.

1.All printing equipments had passed CE standard

2. Our main parts are imported. There are professional QA team and after- sale engineers team in our factory.

3.we have top after –sale service as below:

4.Our all printing machines can guarantee 1 year for free , and maintain is lifelong.

5.Also we’llprovide10% partsof the machines for free before delivery .

If there is damaged parts within guarantee period, we’ll post younew parts for free by air express.

our factory

Our service:

1.All of machines provide an English operation instruction.

2.All of machines can guarantee 1 year for free and provide specific video .

3.Welcome to visit our factory and we supply technology training any time.
