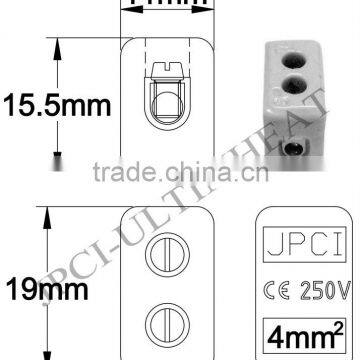

Type BV 4 mm2 Glazed ceramic connection blocks. Nickel plated connectors.

Specifications

Main features:

Ceramic: Ker 110 glazed 5 sides.
Available in 1, 2, 3, 4 poles

Specifications

Ceramic: Ker 110 (feldspar ceramic Si02-Al2O3) glazed 5 sides.

• Bulk density : >2.3 g/cm3

• Water absorption : max 2% (on unglazed side)

• Flexural strength : 80 Mpa/cm²

• Coefficient of thermal expansion : <6 10-6 mm/°C (20-100°C)

• Volume resistivity : >1010 ohms.cm at 100°C

• Dielectric strength : 10 Kv/mm

• Terminal numbering: 1, 2, 3, 4

Screws: Nickel plated steel (Sae1045). Clamping with or without pressure plate upon types

Terminals: Nickel plated brass (63.5~68% Cu)

Maximum ambient temperature, as per EN60730-1(§14-1) :

• on ceramic: 425°C (800°F)

• on nickel plated brass connectors: 230°C (445°F)

Voltage: 250V to 400V upon types and sizes

Applicable standards: (IEC)EN 60998-1 and (IEC) EN60998-2-1 (August 1993)
