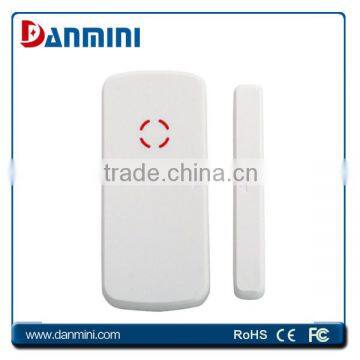

2016 wireless Alarm Magnetic Door Sensor GSM/SMS Home Security alarm YA-MC05

FOB Price

USD $1.5 - $2 / Piece

100 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port shenzhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Danmini
Model Number	YA-MC05		Usage	Door

Product Description

1.Introduction

Door /window sensor for GSM alarm system. You can choose fixing code, or learning code. And also choose 315MHZ or 433MHZ.

2. Features

1.easy to install
2 .Can work individually
3.can work with other alarm system

4.This is separated wireless door sensors, magnetic control and

5.wireless transmit are separatad .

6.It can be installated in doors ,windows and other special places.

Technical Parameters

Operating voltage	DC12V
Standby current	≤5uA
Transmitting current	≤15mA
Battery life	1 to 2 years
Transmitting Freq.	315MHz,433MHz or 868MHz
Sending distance	>100m (in the open area)
Code mode	fixed code, roll code

4. Packing List

1x wireless door/window sensor
1x sticker

1x 12V battery

5.Operation director

Load batteries in part A of the wireless door/window magnets and fix the same on doors/window frames to be monitored, and part B on the doors/windows, as close to each other as possible, as shown in Figure. (We recommend fix parts A and B with screws. The screw holes of part A are located in the mounting board, which should be punched using hard objects).

Door detector (Magnetic) installed on the active door, clean the door’s corresponding position firstly,

remove the wireless door detector, stick the double-sided adhesive paste at the bottom of door detector, door detector’s installation should note the following:

1.Door detector A (transmitter) and door detector B (magnet) should be installed separately,

that the transmitter is mounted on a fixed frame, and the magnet should be mounted on the door

activities (transmitter side position lights should correspond with magnet )

2.magnet and transmitter should be aligned up and down well ,the distance between both should not exceed

10mm.

3.In the time of opening door after installation,door detector’s indicator will flash 1time/s, it expresses the

installation is right.

4.Door detector No 1. indicator flashes one time each second represents alarm prompt, No 2. indicator light

on all the time express battery not enough power.

5 Door detector’s A, B can also be reinforced with screws.
