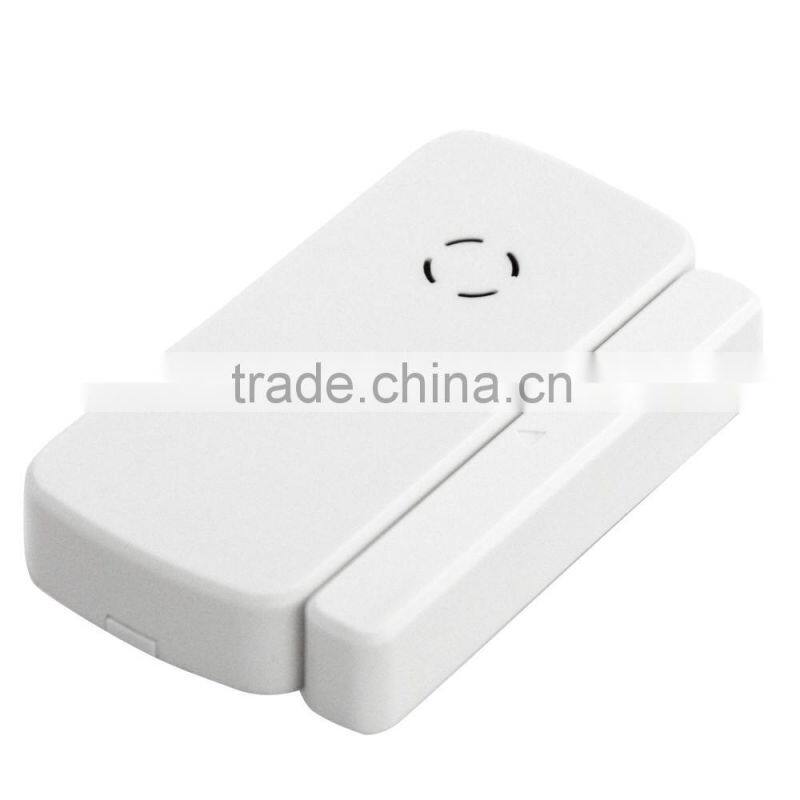

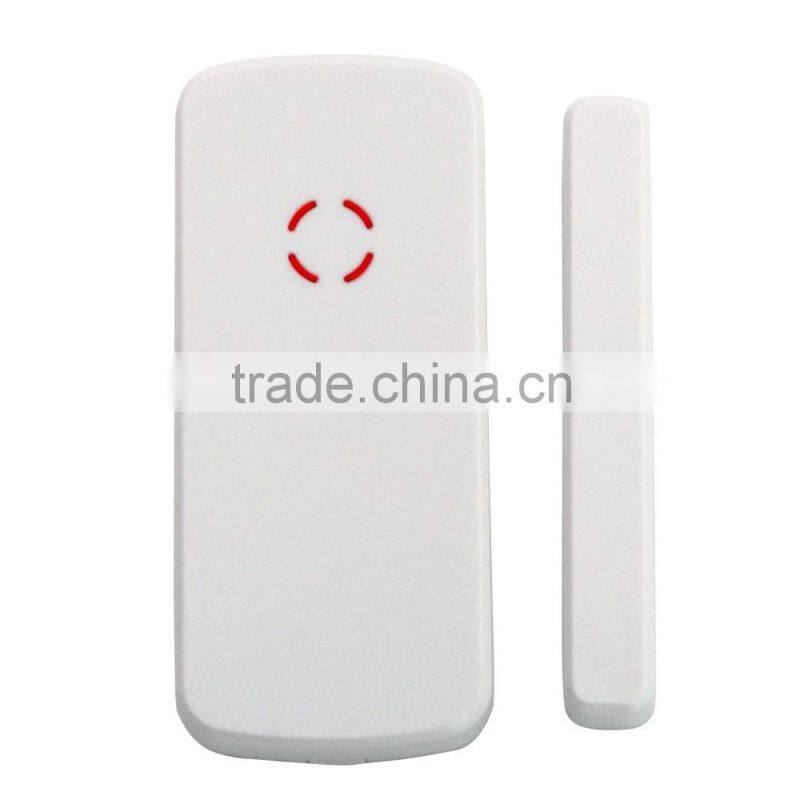

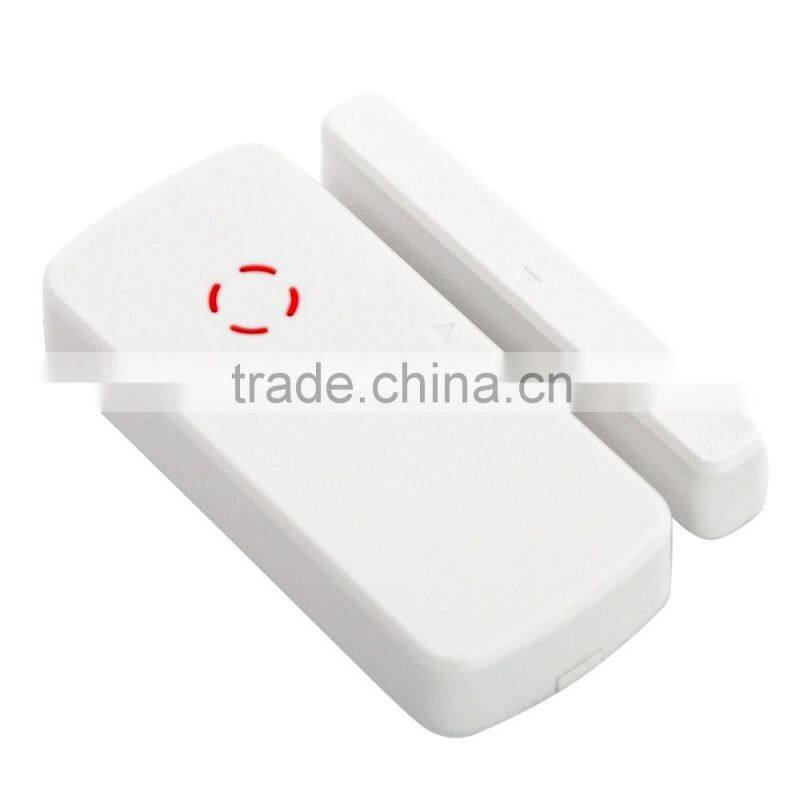

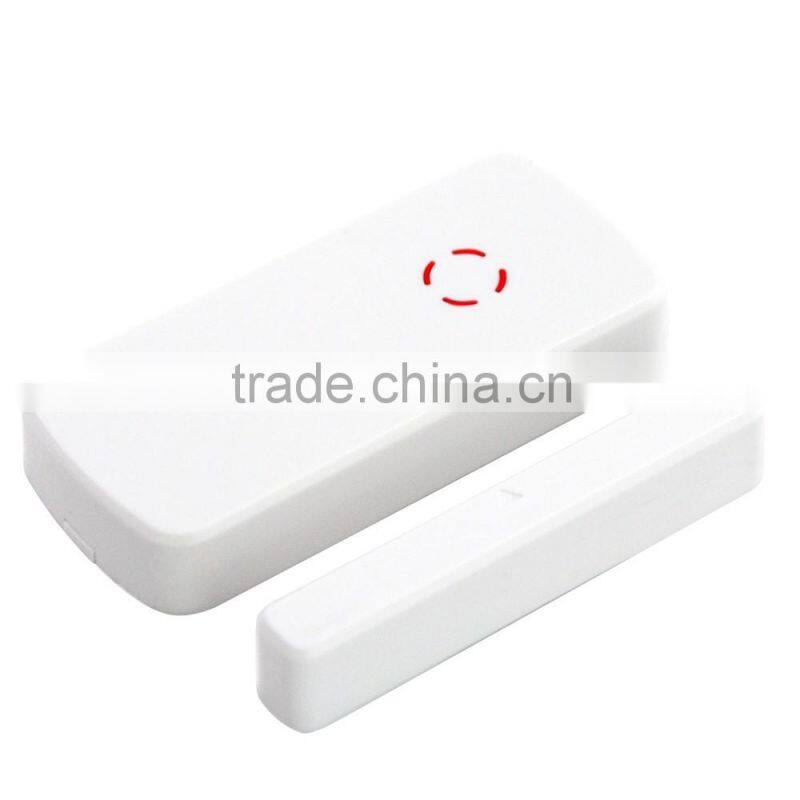

High Security Wireless 12v Magnetic Switch/door Alarm Sensor
- shenzhen
- Credit Card PayPal
You May Like
-
Wireless Alarm System Magnetic Door Contact Sensor
-
Wireless Magnetic Door Sensor
-
Wireless Magnetic Door/window Gap Contact Sensor Detector /alarm Accessories
-
GSM Alarm System Sim Card YA-500-GSM,Home Security Alarm System
-
IR Motion Detecation YA-700-GSM-3,Danmini Product GSM Alarm System
-
Remote Control Home Security Smart Alarm System With IR Motion Detecation YA-700-GSM,Danmini
Product Details
| Place of Origin | Guangdong, China | Brand Name | Danmini | |
| Model Number | YA-MC05 | Usage | Door |
Product Description
Door /window sensor for GSM alarm system. You can choose fixing code, or learning code. And also choose 315MHZ or 433MHZ.
1.easy to install
2 .Can work individually
3.can work with other alarm system
4.This is separated wireless door sensors, magnetic control and
5.wireless transmit are separatad .
6.It can be installated in doors ,windows and other special places.
Operating voltage | DC12V |
Standby current | ≤5uA |
Transmitting current | ≤15mA |
Battery life | 1 to 2 years |
Transmitting Freq. | 315MHz,433MHz or 868MHz |
Sending distance | >100m (in the open area) |
Code mode | fixed code, roll code |
1x wireless door/window sensor
1x sticker
1x 12V battery

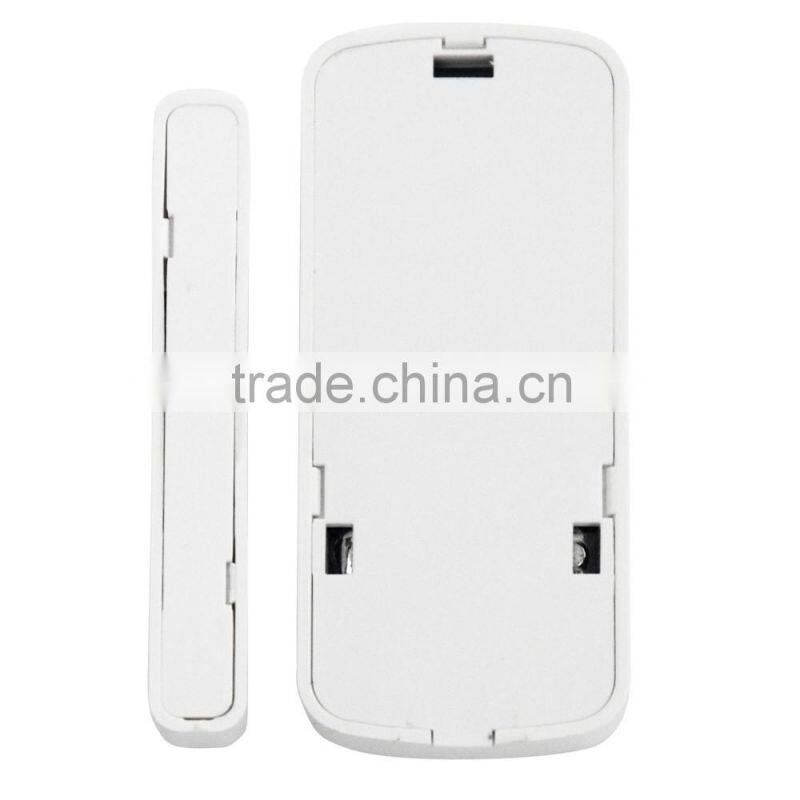

Load batteries in part A of the wireless door/window magnets and fix the same on doors/window frames to be monitored, and part B on the doors/windows, as close to each other as possible, as shown in Figure. (We recommend fix parts A and B with screws. The screw holes of part A are located in the mounting board, which should be punched using hard objects).
Door detector (Magnetic) installed on the active door, clean the door’s corresponding position firstly,
remove the wireless door detector, stick the double-sided adhesive paste at the bottom of door detector, door detector’s installation should note the following:
1.Door detector A (transmitter) and door detector B (magnet) should be installed separately,
that the transmitter is mounted on a fixed frame, and the magnet should be mounted on the door
activities (transmitter side position lights should correspond with magnet )
2.magnet and transmitter should be aligned up and down well ,the distance between both should not exceed
10mm.
3.In the time of opening door after installation,door detector’s indicator will flash 1time/s, it expresses the
installation is right.
4.Door detector No 1. indicator flashes one time each second represents alarm prompt, No 2. indicator light
on all the time express battery not enough power.
5 Door detector’s A, B can also be reinforced with screws.
