Semi-automatic blow molding machine
USD $5,000 - $7,500
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Baixing | |
| Model Number | BX-B | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
We can provide performs and cap moulds for 5 gallon and 3 gallon bottle to meet customer's requirementsSpecifications

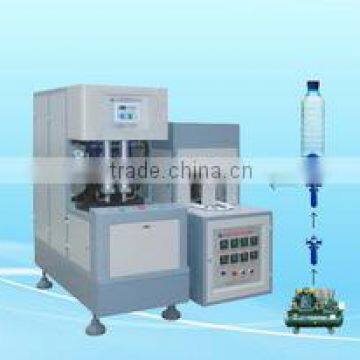

Semi-automatic blow molding machine
2 cavity
Bottle size: 0.1-2.0L
700-1200BPH
1. BX-B Semi-automatic PET bottle blow molding machine is suitable to produce water and soft drink bottles from 100-1500ml.
2. It is also widely used to produce comestic,medical,pesticide bottles,etc.
3. Feeding system carries the preforms automatically.Infrared lamps adopted in the pre-heater to heat the PET preforms.
4. Semi-automatic process with low investment,high efficiency,quick and safe operation,easy trouble shooting,maintenance and other advantages.
Technical parameter:
ITEM | UNIT | BX-B |
Cavity | pcs | 2 |
duct capacity | L | 0.05 |
duct capacity | L | 2.0 |
Min.inner neck diameter | mm | 15 |
Max.inner neck diameter | mm | 38 |
duct diameter | mm | 120 |
duct height | mm | 320 |
Max.mould thickness | mm | 110-230 |
Mould opening stroke(Adjustable) | mm | 160 |
Theoretical output | bph | 700-1200 |
Operating pressure | Mpa | 0.8-1.0 |
Blowing pressure | Mpa | 1-3 |
Max.heating power | kw | 14 |
Machine weight | kg | 650 |
Heater weight | kg | 230 |
Machine dimension(L*W*H) | m | 1.5×0.7×1.85 |
Heater dimension(L*W*H) | m | 1.85×0.7×1.65 |
