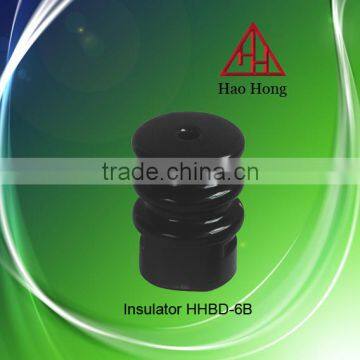

Hot sale low voltage cheapest ceramic insulator

FOB Price

USD $1 - $10 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Hot sale low voltage cheapest ceramic insulator

main dimenstions and standard particulars
cat No.	Fig.No	Main dimensions(mm)	Mechanival failing load (KN )	Power frequency voltage (kv)			weight
Class ANSI		H h D d d1 d2 R		dry flashover	Vertical	Horizontal	N
53-1	2	54 27 57 45 18 22 11	8.9	20	8	10	22
53-2	1	76 38 79 45 18 24 18	13.3	25	12	15	5.4
53-3	2	81 40.5 76 45 18 24 11	17.8	25	12	15	5.9
53-4	2	76 38 105 73 18 24 16	20	25	12	15	11.3
53-5	3	105 52.5 102 73 18 24 11	26.7	35	18	25	11.8
R-8	7	32 57 40 17.5 7	9	10	7	7	1.3
R-6	6	80 70 40 18 7	13.5	15	12	12	3.9
R-2	5	76 80 54 17.5 17.5	20	15	12	12	5.9
R-1	5	54 57 39 17.5 11	9	15	8	8	2.4
1617	4	65 76 44 17.5 9	9	20	9	9	3.9
1617-1	4	65 78 44 18.5 9	9	20	9	9
1617-2	4	67 73 44 16 14.3	13	20	9	9
1618-1	4	75 89 52 17 13	10	20	9	9
1618-2	4	75 89 52 17 12.5	13	25	12	12
1618-3	4	80 85 52 18 14	13	17	9	9
