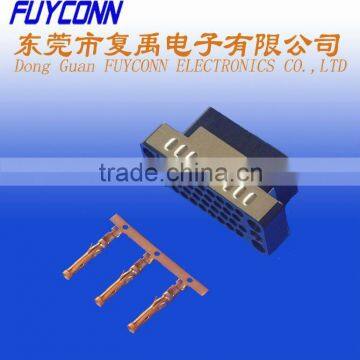

34 Pin V.35 Crimp Receptacle Housing Connector with Metal Shell

Specifications

Material & Finish

PRODUCT CLASSIFICATION : V.35 CONNECTOR

MODEL : FUYV.35005-34

CONNECTOR Gender : Receptacle/ Socket

TERMINAL GENDER : Receptacle/ Socket

Contact Coating : 3U,5U,10U,15U,30U

NO. OF CONTACT : 34 way

INSULATOR MATERIAL: PBT & Glass-fibre reinforced

SHELL : Tin Plated

ELECTROCAL

CURRENT RATING : 7AMP
DIELECTRIC WITHSTANDING VOLTAGE : AC 500Vmin(for 1 minute)
INSULATION RESISTANCE : 500Mn min.(at 500v  DC)
CONTACT RESISTANCE : 25Mn max.mated
WORKING TEMPERATURE : -55 °C to +105°C

Order Information (P/N)

Example for FUYV.3534PSKGA0005

Remark : This is general information for each of order.

                     Plz reference to filling out this form before inquiry.

                     We will feedback the latest information to you on time.

                     We are look forwar to long term business cooperation with you.

Features

1)V.35 series connectors have been designed for use in industrial and commercial telecommunication systems that require a UL-approved high quality interconnect for data transfer.

2) V.35 connector can provide a simple and inexpensive solution that allows for superior speed and noise immunity by using differential signalling on the data and clock lines.

3) V.35 connector is in use on DSU, CSU, router, and frame relay systems throughout the world, with achieved speeds of up to 2 mbps.

4) It can be loaded in any contact pattern from 1 to 34 contacts per connector and can be custom loaded in any configuration.
