Home > Products > V.35 Connetor Crimp Housing > 34P V.35 PCB Right Angle Receptacle Connector with All plastic

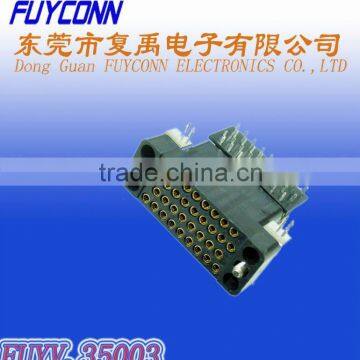

34P V.35 PCB Right Angle Receptacle Connector with All plastic
Negotiable
/ Piece
10 Pieces(Min.Order)
- 50000 Piece / Pieces per Month
- Guangzhou/Dongguan
- T/T Credit Card
You May Like
-
34P V.35 Crimp Housing Plug CISCO Router Connector with Aluminum Case
-
34 Pin V.35 Crimp Receptacle Housing Connector with Metal Shell
-
34 Pin V.35 Plug Connector Crimping Housing with Metal Shell
-
RJ Series 8 pin 1 port Right Angle RJ45 Male PCB Connector for Network equipment
-
RJ Series 10 pin 2 ports PCB Mount Right Angle Male RJ45+RJ11 with LED Light Connector for Network equipment
-
High Density PCB Right Angle 15 Pin Female 2.4 Slim D-SUB Connector lock with Hex nuts and Board Lock
Product Details
| Brand Name | FUYCONN | Model Number | FUYV.35003-34P | |
| Place of Origin | Guangdong, China | Use | Other, Computer |
Product Description
Specifications
V.35 Connectors Crimp housingTypeFull 34 Pin terminals
V.35 PCB DIP Right Angle Plug Connectors
Fill With "O":High Profile
Mechanical Specification
1)Product Type Features:
Connector Classification : V.35 (For CISCO ROUTER)Connector
Product Name : V.35 PCB Right Angel Connector Type
Connector Model : FUYV.35003
Contact Gender : Receptcale
Wire/Cable Type : Solid
2)Terminal and Shell
Insulator Material : PBT & GLASS-fibre Feiaforced
Contact Coating : 1U", 3U",5U", 10U", 15U", 30U"
Terminal Material :Phosphor Bronze
Shell : All Plastic
Wire Size : AWG 24 OR 26
3)ELECTRICAL
Current Rating :7AMP
Dielectric With standing : AC 1200Vmin(for 1 minute)
Insulation Resistance : 1000Mn min.(at 500v DC)
Contact Resistance : 35Mn max.mated
Working Temperature : -55 °C to +105 °C
