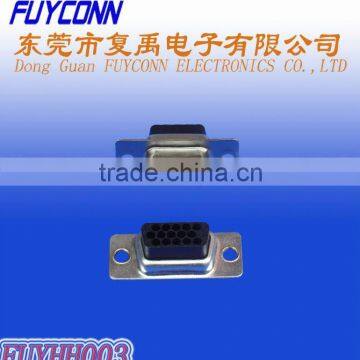

D-SUB HIGH DENSITY CRIMP HOUSING CONNECTOR TYPE FEMALE
- 50000 Piece / Pieces per Month
- GUANGDONG
- T/T
You May Like
-
D-SUB HIGH DENSITY SOLDER STRAIGHT CONNECTOR TYPE FEMALE
-
D-SUB HIGH DENSITY SOLDER STRAIGHT CONNECTOR MALE (TRADITIONAL TYPE )
-
D-SUB& SLIM TYPE DIP STRAIGHT CONNECTOR FEMALE
-
D-SUB& SLIM TYPE DIP STRAIGHT CONNECTOR MALE
-
9PIN Female traditional solder D-SUB connector
-
9PIN D-SUB Female Solder additional Connector
Product Details
| Brand Name | FUYCONN | Model Number | FUYHH003 | |
| Place of Origin | Guangdong, China | Use | Other, Computer |
Product Description
Specifications
Name:D-SUB HIGH DENSITY CRIMPContact Type:Receptacle
D-SUB Crimp Housing Type
Insulator Color: Blue
Compliant:UL 94V-O
Mechanical Specification
1)Product Type Features:
Connector Classification :D-SUB Connector
Product Name : D-SUB High Density Crimp Housing
Connector Model : FUYHH003
Contact Type : Female
Mating Connector :
A: Standard Through Hole
B: 5.8mm Open Hex Rivet In Front Of Connector
C: 5.8mm Open Hex Rivet In Back Of Connector
D: 3.0mm Open Hex Rivet In Back Of Connector
E: 4.0mm Open Hex Rivet In Back of Connector
2)Terminal and Shell
Contact Plating:Fill with"O"
A:5U" ,B:10U" ,C:15U" ,D:30U"
Connector Core Type: DIP Type
Insulator Material : PBT & NYLON 6T
Compliance: UL 94V-0
Contact Material :Phosphor Bronze
NO.of Contact: 09,15,25,37,50
Shell :
A: Tin Plated
B: Tin For Front Shell, Nickel For Back Shell
3)ELECTRICAL
Current Rating :5AMP
Dielectric With standing : AC 500Vmin(for 1 minute)
Insulation Resistance : 1000Mn min.(at 500v DC)
Contact Resistance : 15Mn max.mated
Working Temperature : -55 °C to +105 °C
