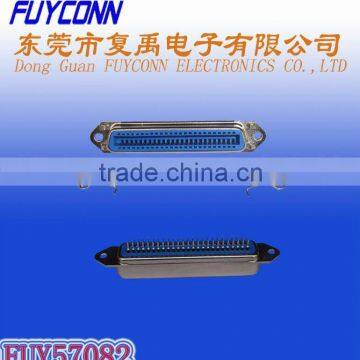

Centronix DDK PCB Straight DIP Straight Connector Female Socket Type
US$ 1 - 2
/ Piece
1000 Pieces(Min. Order)
- Shenzhen / Guangzhou
- T/T Credit Card
You May Like
-
Amphenol 957 PCB Mounting Right Angle Female Receptacle Connector 100 Pin with Sauqare Tin Plate
-
2.16mm Champ 36 Pin PCB Straight Mount DIP Connector Female Receptacle with Spring Latch
-
57 Series Female Receptacle Type centronix connector PCB Mounting 90 degree
-
57 Series Centronic Female Receptacle PCB DIP Straigth Connector Socket Type with Spring Latches
-
DDK Female PCB 90 Degree Centronix Connector for Communication Equipment
-
2.16mm pitch Centronix Connector DDK PCB DIP Straight Type Header Female Receptacle
Product Details
| Brand Name | FUYCONN | Model Number | FUY57082 | |
| Place of Origin | Guangdong, China | Interface Type | Displayport | |
| Use | Other, Computer Peripherals |
Product Description
Specifications
Item No.: FUY570821,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features
Product Type: Connector
Connector Model: FUY57082
Product Line:CENTRONIC/Micro-Ribbon
Connector Style: Female
Orientation:Standard Orientation
PCB Mount Style: Straight
Mechanical Attachment
Panel Attachment Style: Square Rivet Insert
Plate Mertial:Thermoplastic
Com Material:Thermoplastic
Terminal Related Features
Certerline :2.16mm(0.85 in)
Number of Position: 14,24,36,50,64 pins
PCB Mount Retention Type: Right Angel
Contact Plating: Gold (A:5u" ,B10u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style: Socket
Housing Material: Thermoplastic
UL Flammability Rating: UL 94-V0
Special Function
A:180°C DIP Square Holes (4.2mm)
B: Rivet Insert with Bail Lock(accessory)
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
