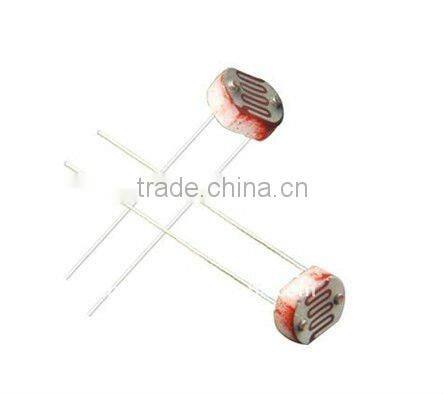

Photocell Sensor for Light Switch

Specifications

  In order to have good cooperation ,we will send free sample to client for testing first!

 For photosensitive resistor in our factory,we have Many series,the best  Price and the best service .Quality also is excellent !

LIGHT DEPENDENT RESISTOR

SPECIFICATION AND PERFORMANCE

Measuring Conditions

1. Light resistance:
Measured at 10 Lux with standard light A (2854K color temperature) and 2hr illumination at 400-600 lux prior to testing.
2. Dark Resistance:
Measured 10 senconds after closed 10 lux.

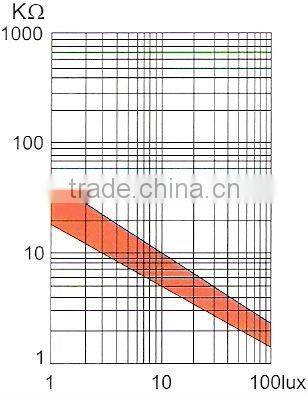

3. Gamma Characteristic:
Between 10 lux ande 100 lux and given by
γ  =  lg(R10/R100)
R10,R100 Cell resistance at 10 lux and 100 lux.
The error of γ is ± 0.1.
4. Pmax:
Max. power dissipation at ambient temperature of 25 °C.
5. Vmax:
Max. voltage in darkness that may be applied to the cell continuously.

OANDE - Your Reliable Partner for optical&electronic

We offer high quality photosensitive resistance,metal photosensitive resistance,photosensitive sensor,fresnel lens and optical coating lens......


Our company continuosly endevaours to give best service and at par quality.
-------------------------------------------------------------------------------------------------------------

Why choose us?

1) OANDE is one of the leading manufacturer of optical & electronic in China. Thanks to our staffs hardworking and sincere service for more than 5 years,OADE has been recognized as A Reliable Partner for optical & electronicin global market.

2) A strong team of engineers in research and development of new products, for customers to resolve technical problems, provide quality assurance.

3) Due to OANDE strict quality control management & competitive price, we gain orders from Government Purchasing in both domestic market and overseas market.

4) OANDE guarantees you quicker and better service.

-------------------------------------------------------------------------------------------------------------

Orders

Small orders and sample orders are also welcome.

All of our products have enough stock, small orders immediate days of delivery.

We have a lot of production line production, large orders for short delivery.

-------------------------------------------------------------------------------------------------------------

Delviery

Usually we deliver our goods by DHL, UPS, TNT or EMS. We choose one according to your preference. You can also appoint other way for delivery.

For order on ready production, goods will be delivered within 1 days since payment receipt date. Tracking number will be provided to you once we send out the goods. Goods take normally 3-5 days to reach you.

-------------------------------------------------------------------------------------------------------------

Package

200pcs/sealed plastic bag, 1000pcs/box,10000pcs/carton.

or as per your request.

-------------------------------------------------------------------------------------------------------------

Payment

T/T, L/C at sight, Paypal, Western Union, Alipay are all available for your option.
