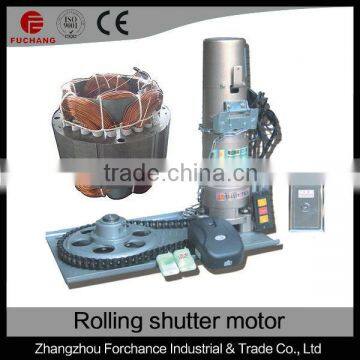

1000kg-3p electric motor for automatic door
- XIAMEN
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Fuchang | |
| Model Number | FC-1000-3P |
Product Description
Automatic door Motor Advanced Features
1.Powerful starting strength, loading up to 1500kg
2.Available in 3-phase (FC-500-3P,FC-600-3P,FC-800-3P,FC-1000-3P,FC-1300-3P)
3.Overworking for a short time
4.Overheat protection:if the motor temperature is over 110 degreed centigrade, the motor stops working automatically, works again if temperature return below 70 degreed centigrade
5.Limit switch enables precise adjustment in up and down positions
6.Electric and manual operations
7.Release chain in case of power failure
8.Safety lock device prevents vehicle or people from damage in case of roller chain is break off
automatic door motor Main Specifications
| Model | Motor Power(W) | Max.lifting force(KG) | Max.hosting height(M) | Max.output Torque(N.W) | Rated Current(A) | Large Sprocket Reel Speed(R/MIN) | Chain No. |
| Power Supply(V/HZ): 220/50 | |||||||
| DJM-300-1P | 250 | 300 | 6 | 168 | 3.3 | 4.8 | 08B |
| DJM-400-1P | 250 | 400 | 6 | 225 | 3.3 | 4.8 | 08B |
| DJM-500-1P | 370 | 500 | 6 | 343 | 3.9 | 4.8 | 10A |
| DJM-600-1P | 370 | 600 | 6 | 412 | 3.9 | 4.8 | 10A |
| DJM-800-1P | 400 | 800 | 9 | 647 | 4.5 | 3.94 | 10A |
| DJM-1000-1P | 400 | 1000 | 9 | 809 | 4.5 | 3.75 | 12A |
| Power Supply(V/HZ): 380/50 | |||||||
| DJM-600-3P | 250 | 600 | 6 | 412 | 1.2 | 4 | 10A |
| DJM-800-3P | 300 | 800 | 9 | 647 | 2.0 | 3.94 | 10A |
| DJM-1000-3P | 400 | 1000 | 9 | 1102 | 2.3 | 3.74 | 12A |
| DJM-1300-3P | 600 | 1300 | 9 | 1372 | 3.0 | 4.4 | 12A |
| DJM-1500-3P | 600 | 1500 | 9 | 1610 | 3.2 | 5.2 | 16A |
