Home > Products > DJM-3P Rolling door motor > DJM-1000-3P Good price motor for auto shutter motor

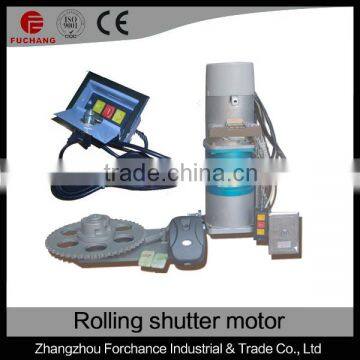

DJM-1000-3P Good price motor for auto shutter motor
US$ 60 - 200
/ Set
1 Set(Min. Order)
- XIAMEN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Fuchang | |
| Model Number | DJM-1000-3P |
Product Description
Specifications
auto shutter motor :1.Durable
2.Simplicity of installation and operation
3.Match the ordinary shutter
OEM manufacturer for auto shutter motor
Feature
- Left or right installation is ok
- design controller with different funtions according to customers request.
- 300kgs/500kgs could add reserve power function
- overheat protection:if the motor temperature is over 110 degreed centigrade, the motor stops working automatically, works again if temperature return below 70 degreed centigrade
- It can be operated by electricity and manual
- Durable compact design great elevating power with low noise
- Could match infrared sensor or alarm system(optional)
- Four relays inside the motor,four micro-active switch inside the limit system
- Features:
Auto shutter motor Main Specifications
| Model | Motor Power(W) | Max.lifting force(KG) | Max.hosting height(M) | Max.output Torque(N.W) | Rated Current(A) | Large Sprocket Reel Speed(R/MIN) | Chain No. |
| Power Supply(V/HZ): 220/50 | |||||||
| DJM-300-1P | 250 | 300 | 6 | 168 | 3.3 | 4.8 | 08B |
| DJM-400-1P | 250 | 400 | 6 | 225 | 3.3 | 4.8 | 08B |
| DJM-500-1P | 370 | 500 | 6 | 343 | 3.9 | 4.8 | 10A |
| DJM-600-1P | 370 | 600 | 6 | 412 | 3.9 | 4.8 | 10A |
| DJM-800-1P | 400 | 800 | 9 | 647 | 4.5 | 3.94 | 10A |
| DJM-1000-1P | 400 | 1000 | 9 | 809 | 4.5 | 3.75 | 12A |
| Power Supply(V/HZ): 380/50 | |||||||
| DJM-600-3P | 250 | 600 | 6 | 412 | 1.2 | 4 | 10A |
| DJM-800-3P | 300 | 800 | 9 | 647 | 2.0 | 3.94 | 10A |
| DJM-1000-3P | 400 | 1000 | 9 | 1102 | 2.3 | 3.74 | 12A |
| DJM-1300-3P | 600 | 1300 | 9 | 1372 | 3.0 | 4.4 | 12A |
| DJM-1500-3P | 600 | 1500 | 9 | 1610 | 3.2 | 5.2 | 16A |
