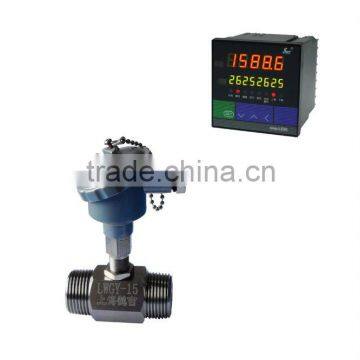

LWGY-25 turbine flow meter

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Sanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	HUGE
Model Number	LWGY-25

Product Description

Specifications

LWGY-25 turbine flow meter
1.accuracy 0.5%
2.output 4-20mADC
3.suplly 5-24VDC
4.Explode-proof Ex dIIbt4

Model LWGY turbine flow meter adaptsto measure the liquid rate and total flowrate of lowviscosity.It can be windely used inthe fields of Petrol,Chemical industry, Metallurgy, Scientific research for measuring or control. Several output and display methods can be selecteb.

Feature

Hi-Accuracy 0.2% 0.5% 1%

Wearable Tungsten carbonized shaft and bearing,be the same with the mediumof sully

Erode-resistant Be the same with sea water, ammonia, acetometer,etc

Bi-direction Measuring bi-direction flowoptional

Multi-output pules,4-20mADC,totaland rat display in thefield

Power supply 5-24VDC

Explode-proof Ex dII BT4/Ex idI

Spectrum2,4,6,10,15,25,40,50,80,100,150,200,250,300mm

Specifocation:

DN(mm)	Flow range(m³/h)						Medium temp.	PN (mPa)	Env.Temp	Pressure loss (mPa)
	Error (0.2%)		Error (0.5%)		Error (1.0%)
	Min	Max	Min	Max	Min	Max
2A					0.03	0.16	-20~+120 (150*) (Degree Centigrade)	6.3	-25~+55 (Degree Centigrade)	0.12
4A					0.04	0.25		6.3		0.12
6A					0.1	0.6		6.3 16* 25* 40*		0.08
10A					0.2	1.2				0.05
15A			0.6	4	0.6	6				0.035
25A			1.6	10	1	10				0.035
40A	3	20	3	20	2	20		1.6or2.5 16* 25*		0.025
50A	6	40	6	40	4	40
80A	16	100	16	100	10	100
100A	25	160	25	160	20	200		1.6 2.5
150A	60	400	50	300	40	400
200A			100	600	80	800
250A			160	1000	120	1200		1.6
300A			260	1600	180	1800		1.6

Note:Mark "*" means special order
