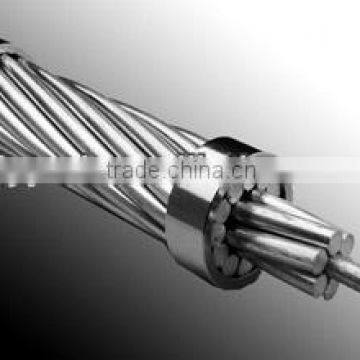

AAAC 1000mm2 Bare All Aluminium Alloy Conductor

Specifications

AAAC 1000mm2 Bare All Aluminium Alloy Conductor

AAAC 1000mm2 Bare All Aluminium Alloy Conductor

Applications
Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio; affords better sag characteristics. Aluminum alloy gives AAAC higher resistance to corrosion than ACSR.

Construction
Standard 6201-T81 high strength aluminum conductors, conforming to ASTM Specification B-399, are concentric-lay- stranded, similar in construction and appearance to 1350 grade aluminum conductors. Standard 6201 alloy conductors are similar to other alloy conductors commercially known as Ardival, Aldrey or Almelec. They were developed to fill the need for an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum conductors, but without a steel core. The DC resistance at 20°C of the 6201-T81 conductors and of the standard ACSRs of the same diameter are approximately the same. Conductors of the 6201-T81 alloys are harder and, therefore, have a greater resistance to abrasion than conductors of 1350-H19 grade aluminum.

Specifications
AAAC bare conductor meets or exceeds the following ASTM specifications :
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purposes
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.

Stranded 1350 aluminum conductors shown in this section of data are classified, as follows:

Packing & Shipping

Power Cable is usually packed with wooden drum, it can also be packed as the customers' requirement.

Here are some pictures of our packing:

Our factory

Our service

1) Inquiries are typically answered within 12 hours and OEM is welcome.

2) We have experienced QC to control the quality of different kind of cables.

3) We're CCC certificated, and can provide CE, Rohs and SGS certificates before exporting.

4)We have grown from a small factory with an annual turnover of USD50,000 to over USD50,000,000 during these 10 years.

5) Huge Inventory Allows Us To Ship Your Order Immediately

6) Our employees are all capable and professinal. They can offer you the Prompt Courteous Service.

7) We ship worldwide.

Please feel free to contact me for more information.
