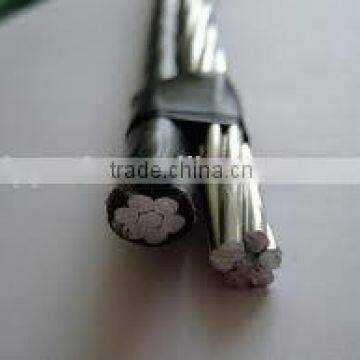

10kv rated voltage thin XLPE insulated aluminum alloy conductor aerial cables overhead
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
electrical cable size 10kv rated voltage thin XLPE insulated anneal copper core conductor aerial overhead cables
-
Aluminum Bare Stranded Wire With Steel Core
-
Aluminum Clad Steel Core Aluminum Stranded Wire
-
Aluminium Conductor Steel Reinforced Acsr Bare Conductor
-
Overhead ACSR Conductor (Aluminium Conductor Steel Reinforced)
-
All Aluminum Conductor (AAC)
Product Details
Place of Origin | Henan, China | Brand Name | Dayuan | |
Model Number | JKLGV/JKLGY/JKLGYJ....... | Type | Insulated | |
Application | Overhead | Conductor Material | Other, Aluminum Alloy | |
Conductor Type | Stranded | Insulation Material | Other, XLPE |
Product Description
Specifications
1, IEC, ASTM, DIN, BS VDE, UL, GOST,SAS standard.2, ISO, CCC, CQC certification approved. 8 Years Experience of OEM service
Application
Aerial insulated cables of rated voltages up to and 1kV, This product is applicable to the aerial power distribution lines of rated voltage 0.6/1KV and below as the fixed laying lines or service wire.
Aerial insulated cables with rated voltages of 10 kV ,This product is a new type used for electricity supply on aerial power transmission lines, which has been preferentially selected as the 10kV engineering transmission line for the construction and transformation of grid system. This series of product is appropriate for maintained and security of lines and the product with annealed copper core is applicable to the down lead of transformer.
Stranded aluminium conductor steel-reinforced cores aerial insulated cables of rated voltages up to 10 kV ,This product is applicable to the aerial power distribution lines of A.C. voltage up to 10kV.
Operating Characteristics
1.Max. permissible continuous temperature:
PVC,PE insulated aerial cables:70°C
XLPE insulated aerial cables:90°C
2.HDPE insulated aerial cables:75°C
Max. short-circuit temperature of the conductor shall not exceed:
PVC insulated aerial cables: 160°C;
PE insulated aerial cables: 130°C;
XLPE insulated aerial cables: 250°C.
HDPE insulated aerial cables:150°C
3.Installation ambient temperature
The installation ambient temperature should not below -20°C.
Type of Product
Type | Name of product |
JKV | Aerial polyvinyl chloride insulated copper core cables |
JKLV | Aerial polyvinyl chloride insulated aluminium cores cables |
JKLHV | Aerial polyvinyl chloride insulated aluminium alloy cores cables |
JKY | Aerial polythene insulated copper core cables |
JKLY | Aerial polythene insulated aluminium core cables |
JKLHY | Aerial polythene insulated aluminium alloy core cables |
JKYJ | Aerial XLPE insulated copper core cables |
JKLYJ | Aerial XLPE insulated aluminium core cables |
JKLHYJ | Aerial XLPE insulated aluminium alloy core cables |
