Spring Nut With Spring Leaf Slot 10
- NINGBO SHANGHAI
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | MD | |
| Model Number | MD-SN-A10 | Standard | ISO |
Product Description

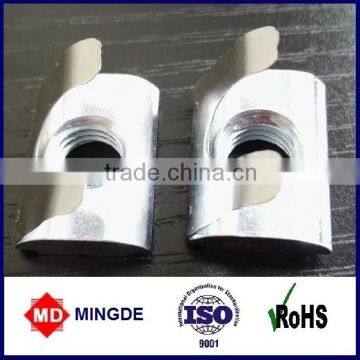

SPring nut with spring leaf slot 10
Used for slot 8 profile
Thread: M4,M5,M6,M8 available
1. Application: can insert it into the slot, the spring allows to fix it even with vertical mounting.
2. Dimension drawing:
3. Order part No.
| Part No. | Thread | Surface | Material | Weight |
| MD-SN-A1001 | M4 | Zinc plated | Carbon steel C45 | 9.50g |
| MD-SN-A1002 | M5 | Zinc plated | Carbon steel C45 | 9.25g |
| MD-SN-A1003 | M6 | Zinc plated | Carbon steel C45 | 8.75g |
| MD-SN-A1004 | M8 | Zinc plated | Carbon steel C45 | 8.00g |
4. Remarks:
1)Material: stainless steel available.
2)Surface: zinc plated, nickel plated available.
3)Packing: small box packing or bulk packing acc. to your requirement.
we can also produce acc. to customer's drawing or samples.
The company's products include (but are not limited) the following:
1).Nuts: hammer nut; Roll in Tslot nut with spring loaded ball; Roll in T slot nut with spring leaf; Rhombus nut; square nut,flange nut etc.
2).Bolts: T bolt; hammer head bolt; countersunk crew, set screw, hex socket cap screw; rounded head screw etc.
3).Quick connector, Mitre connector.
4).T slot bar.
5).Plate with threaded hole; connector plate.
6).Stamping parts.
