T slot nut with spring loaded ball
- NINGBO SHANGHAI
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | MD | |
| Model Number | MD-TN-D08 | Standard | ISO |
Product Description

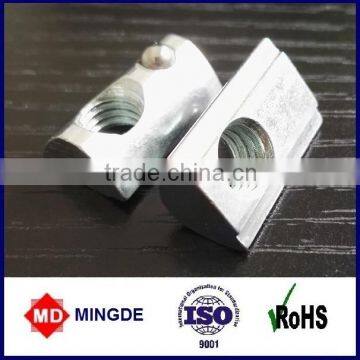

T slot nut, Roll in T slot nut with spring loaded ball
Used for Aluminum profile slot 8
1. Application: T-slot nuts, push in, ball type, for swiveling into the T-lot, fits into the T-slot at any position, held in position by a spring loaded ball, raised area fits into the T-slot to stop twisting.
2. Dimension drawing:
3. Order Part No.
| Part No. | Thread | Surface | Material | Weight |
| MD-TN-D0801 | M4 | Zinc plated | Carbon steel C45 | 10.85g |
| MD-TN-D0802 | M5 | Zinc plated | Carbon steel C45 | 10.52g |
| MD-TN-D0803 | M6 | Zinc plated | Carbon steel C45 | 10.08g |
| MD-TN-D0804 | M8 | Zinc plated | Carbon steel C45 | 9.00g |
Material: Steel/ Stainless steel
Surface: Zinc plated or nickel plated available
we can also desgin, develop and manufacture acc. to customer's given drawing or sample.
Small order qty is accepted, samples are available upon request.
The company's products include (but are not limited) the following:
1).Nuts: hammer nut; Roll in Tslot nut with spring loaded ball; Roll in T slot nut with spring leaf; Rhombus nut; square nut,flange nut etc.
2).Bolts: T bolt; hammer head bolt; countersunk crew, set screw, hex socket cap screw; rounded head screw etc.
3).Quick connector, Mitre connector.
4).T slot bar.
5).Plate with threaded hole; connector plate.
6).Stamping parts.
