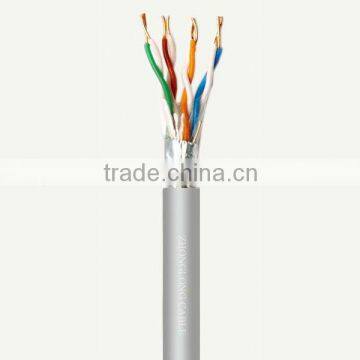

utp cat5e lan cable 4pr 24awg

Specifications

Specifcation :

utp cat5e lan cable 4pr 24awg

Detail Specifications:

Cat.5e UTP Patch Cable,with RJ45 8P8C Connector

Rated Temperature:75Degree

Standard:UL444,TIA/EIA568B.2,YD/T1019-2001

Conductor:Stranded bare copper

AWG:24

Insulation:HDPE

Shield:Pe-Tape + Al foil + Pe-Tape

Twisted pair:Four

Drain wire:Solid Tinned copper

Jacket:PVC

Electrical Characteristic:

1.0-100.0MHz Impedance (ohms):100 +/- 15

1.0-350.0MHz Delay Skew (ns/100m):<=45

Pair-to-Ground Capacitance Unbalance (pF/100m):<=330

Max. Conductor DC Resistance 20 degree(ohms/km):93.8

Resistance Unbalance (%):<=5

LAN Cable:

• UTP unshielded twisted four pairs category five cables (stranded & solid)
• FTP shielded twisted four pairs category five cables (stranded $ solid)
• SFTP shielded twisted four pairs category five cables (stranded& solid)
• UTP unshielded twisted four pairs enhanced category five cables (stranded& solid)
• FTP shielded twisted four pairs enhanced category five cables (stranded &solid)
• SFTP shielded twisted four pairs enhanced category five cables (stranded& solid)
• UTP unshielded twisted four pair category six cables (stranded & solid )
• FTP shielded twisted four pairs category six cables (stranded& solid)
• Structure: bare copper, PE insulation, FR PVC/LSOH PVC jacket
• Standards: ISO/IEC 11801, ANSI/TIA/ELA-568A
• Used as work-station option to the FD/IDF and others
• Horizontal cabling, supports TP-PMD audio and integrated
