good performance easy operation size linear vibrating screen

Specifications

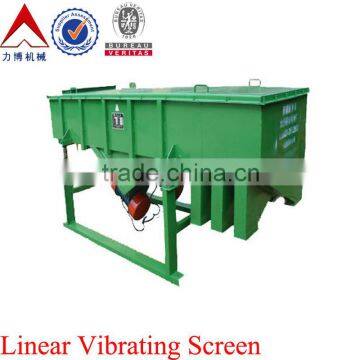

Size Linear Vibrating Screen

♥ Introduction of size linear vibrating screen :

1). Linear vibrating screen using the vibration motor excitation to cheer for the vibration source, make the material being thrown up on screen, at the same time, forward a straight line material from the feeder evenly into the sieving machine feeding port, several kinds of specifications by multilayer sieve sieve,respectively from the respective outlet. With low consumption, high output, simple structure, easy maintenance, fully closed structure, no dust overflow scattered, automatic row material, more suitable for assembly line work.

2). Linear vibrating screen widely used in mining, mineral processing, coal, building materials, thermal power plant, chemical industry and other industries necessary important screening equipment.

♥ Main structure of size linear vibrating screen :

 Linear vibrating machine is mainly composed of screen box, screen, screen mesh, vibration motor, motor

pedestal, damping spring, support, etc.

♥ Features of size linear vibrating screen :

(1) Unique mesh structure design, convenient and rapid change screen (only 3 to 5 minutes), moreover this

 kind of design allows the use of a variety of screen (nylon, special dragon, PP network).

(2) The sieve machine design; Delicate and easy to assemble, one can sieve machine operation.

(3) Compared with other brands, with a large filtering area and high benefit of processing capacity.

(4) The parent mesh completely support the fine mesh, and so the fine mesh is scored a long life, and reduce

the mesh material use, production process of silt for a long time which can reduce the cost of many.

♥ Working principle of size linear vibrating screen :

Linear vibrating screen uses the double vibration motor driver at work, when two vibrating motors do synchronization,the help rotates, the vibration force produced by eccentric block in parallel to the direction of the motor axis offset each other, in the fold is perpendicular to the direction of the motor shaft for a resultant force, so the trajectories of sieve machine for a straight line. The two motor shaft relative screen surface has a Angle, the vibration force and material since the gravitational force, under the action of the material on the screen was thrown up by leaps and bounds ahead forlinear motion, so as to achieve the purpose of the screening and grading the supplies.

♥ Main technical parameters of size linear vibrating screen :
