2015 Stone Impact Crusher for Sale Pf1210 Impact Crusher Design

Impact Crusher Design

♣  Usage and Application of impact crusher design :

The Impact Crusher is used for primary, secondary, fine crushing mining and rocks (for example, the granite, marble, and limestone) materials with compressive strength less than 350 MPa. The impact crusher is widely used for sand and rock producing in the industry of roads, railways, reservoir, electricity power and building materials and so on.

♣ Working Principle of impact crusher design :

PF series of products can crush material through impacting ,when they work ,the motor drives the rotor rotate of the impact crusher with high speed .After the material get into the entrance ,they will hit and crush with plate hammer on the rotor ,then they will be recrushed when they counter to the liner .At last ,they are discharged from the outlet .Users can adjust the space between counter rack and rotor aircraft so that they can achieve their goals on changing the discharge size and material shape .

♣ Features of impact crusher design :

1).Connected with locking sleeve assembly.
2).Final product with cubical shape.
3).The blow bar with high chrome.
4).Easy maintenance. Hydraulic or hand opening.
5).High reduction ratio and crushing efficiency.

♣ Main technical parameters of impact crusher design :

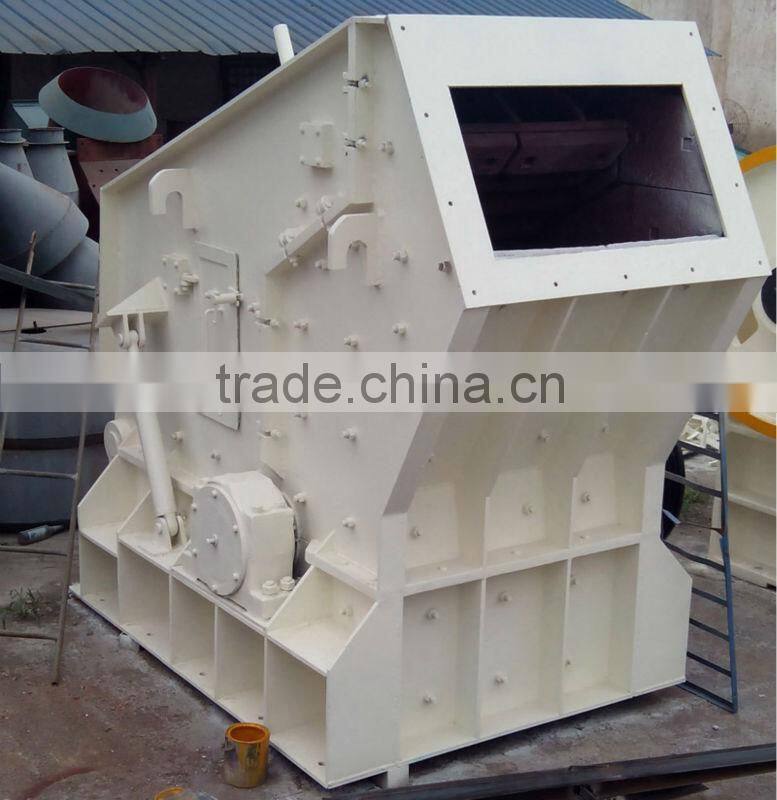

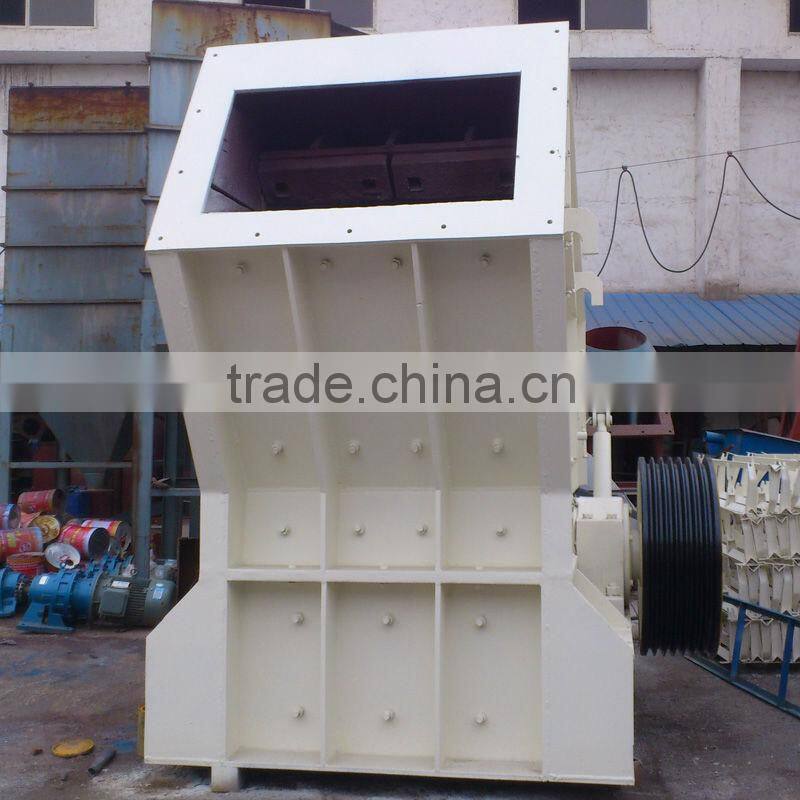

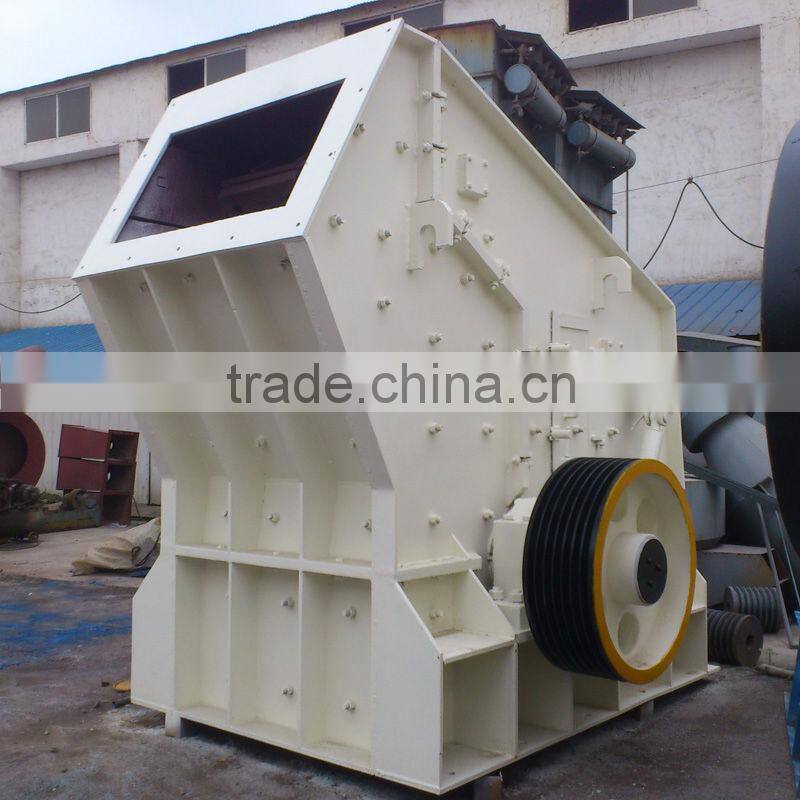

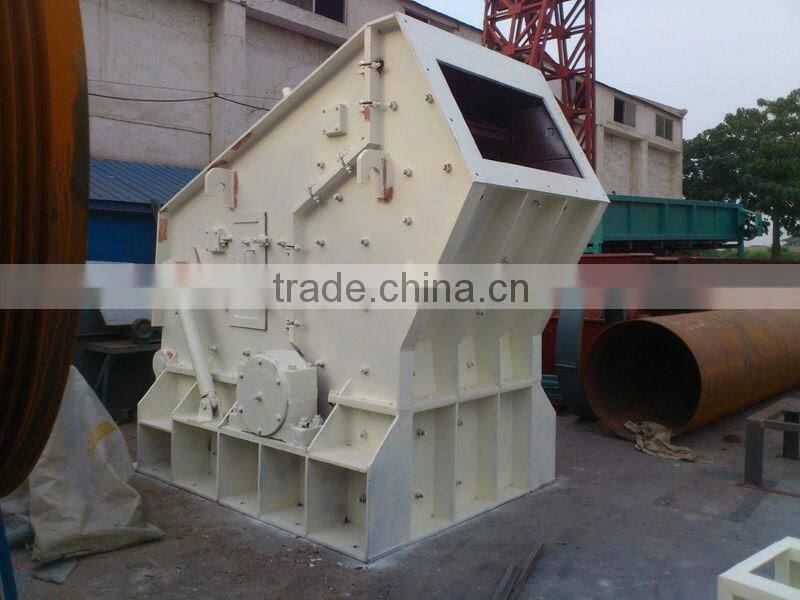

♣ PF-1214 impact crusher finished product picture :
