2015 China Good Quality Pe150*250 Small Portable Rock Crusher

Portable Rock Crusher

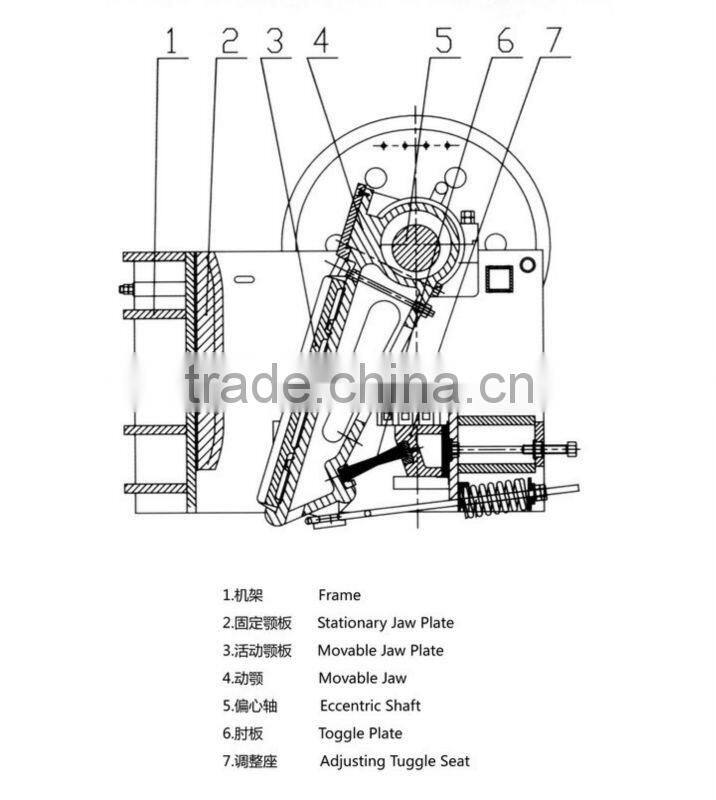

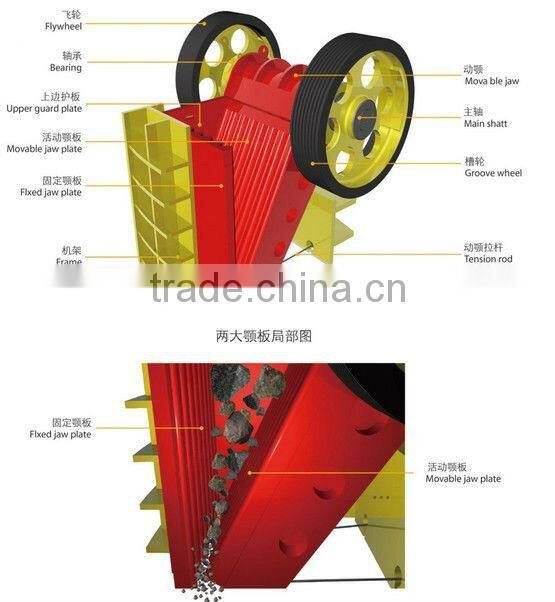

♥ The Structure Diagram Of Portable Rock Crusher :

1. Frame .

2. Stationary jaw plate .

3. Movable jaw plate .

4. Movable jaw .

5. Eccentric shaft .

6. Toggle plate .

7. Adjusting tuggle seat.

♥ Application Of Portable Rock Crusher :

Portable Rock Crusher has big broken production, product size is even, simple structure, reliable operation, maintance is simple and convenient, cost is economic and other characteristic, and is used in mine extensively, smelt and building material, high way, railwayway, water railway, water conservancy and chemical indutry, breakage fight pressure within 350 sign handkerchives various stocks.

♥ The Features Of Portable Rock Crusher :

1). Use of world-class manufacturing processes, selection of the most high-end materials;

2). The base of bearing use of integrated steel structures;

3). The broken cavity is deep and without dead zone, increased capacity and output feed;

4). Lubrication system is safe and reliable, convenient of replace parts, easy to maintenance;

5). The outlet use of pad-style adjustment devices, convenient and reliable, large of adjustment range, and increase the flexibility of the equipment;

6). Low noise, less dust.

♥ The Working Principle Of Portable Rock Crusher :

The belt and belt pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It becomes bigger when the movable jaw runs up. The movable jaw plate leaves the fixed jaw plate under the action of tension rod and spring , then the end products come out from the crushing cavity.

♥ The Maintenance And Use Of Portable Rock Crusher :

1). Check the lubrication condition of bearing is well or not. Is there enough lubrication in Joint of Cubits board
2). Check all the fasteners
3). Check the Transmission belt, if the Transmission belt is broken, it should be changed . When there is greasy
dirt on the belt, please clean it.
4). Check if there is any stone or materials in crushing cavity. If there is sundry in crushing cavity, please clean it and make sure the machine start with no-load.

♥ Main Technical Parameters of Portable Rock Crusher :

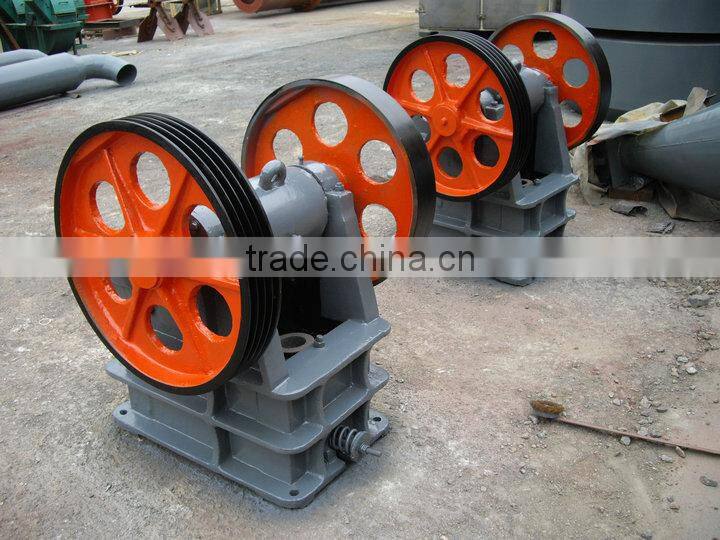

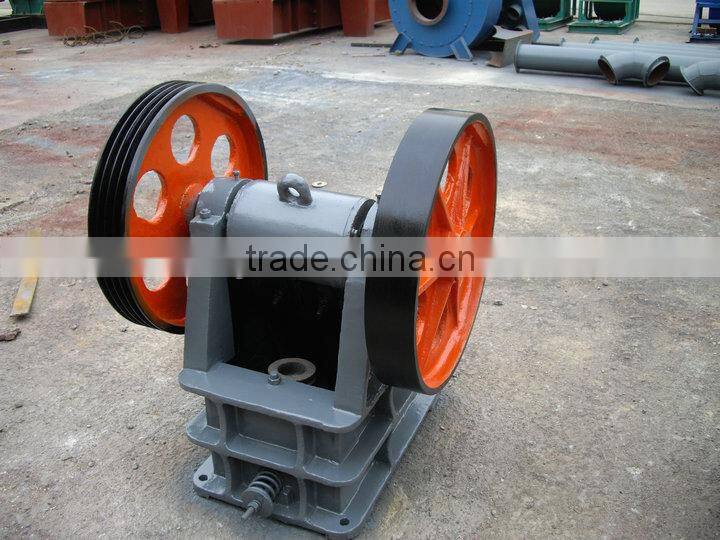

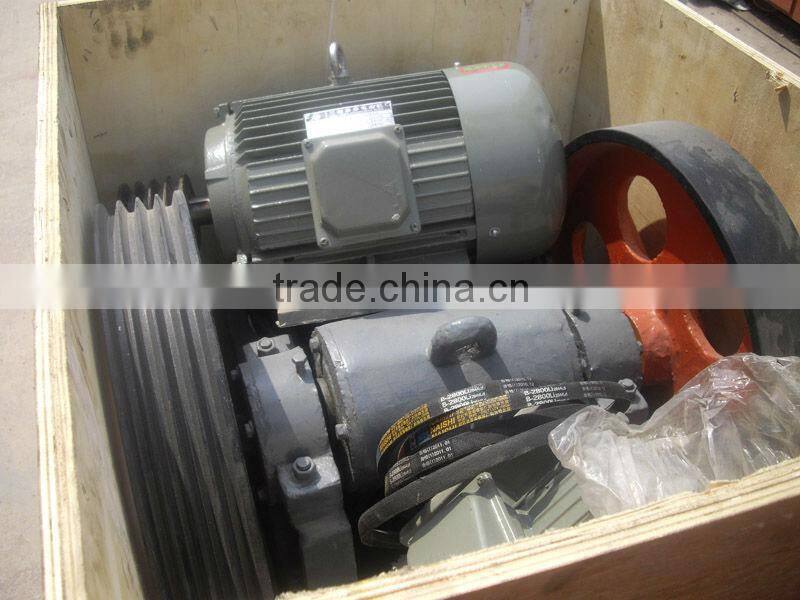

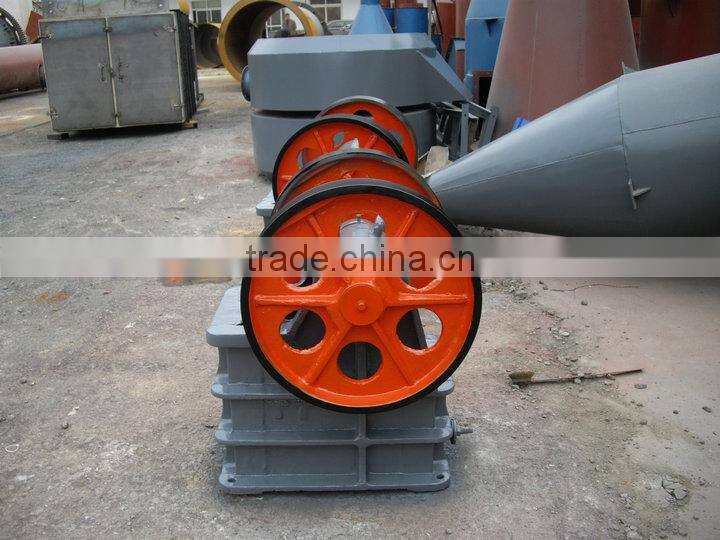

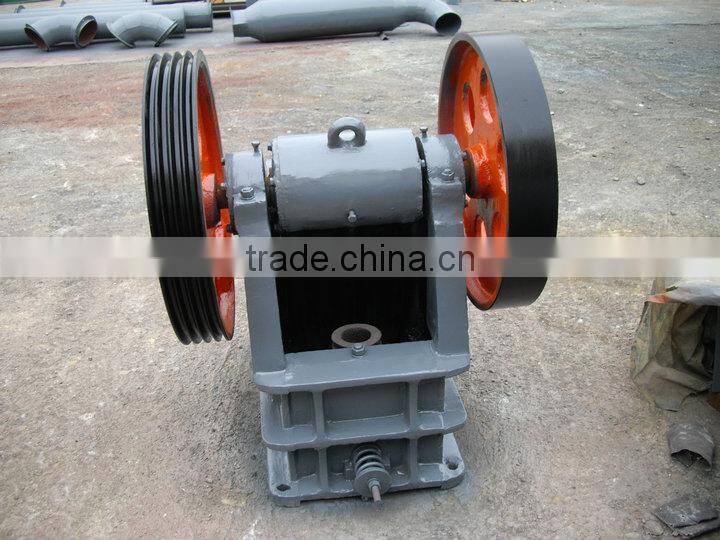

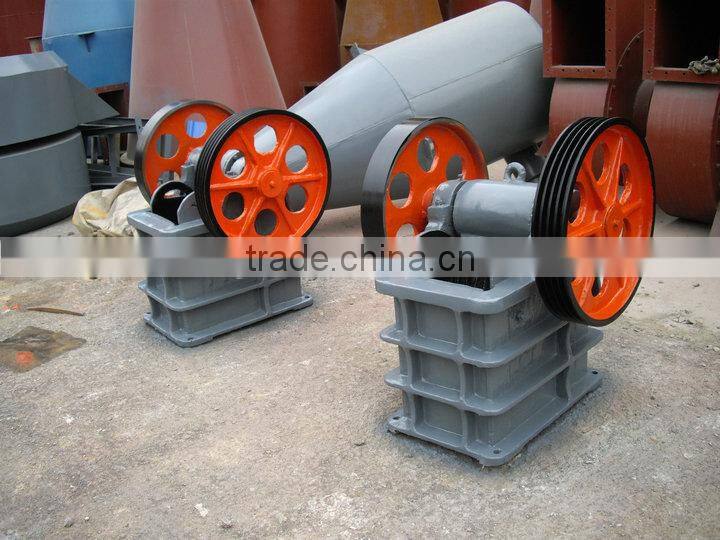

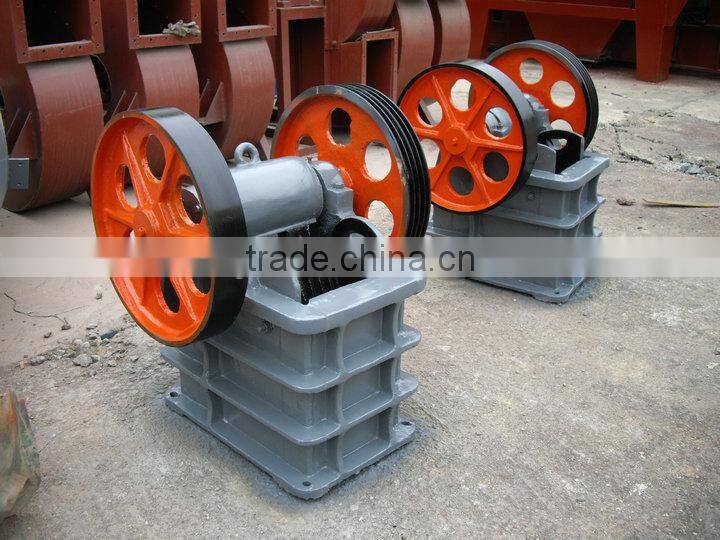

♥ PE150*250 Jaw Crusher Finished Product :

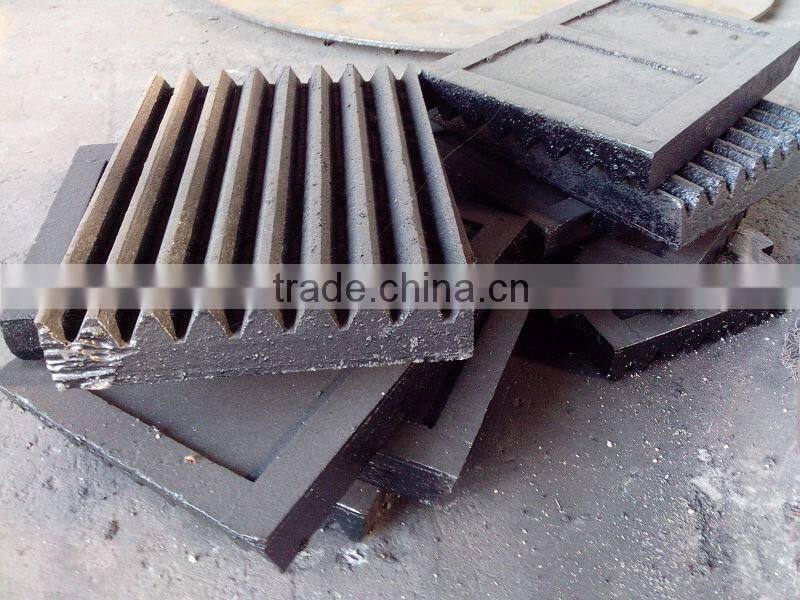

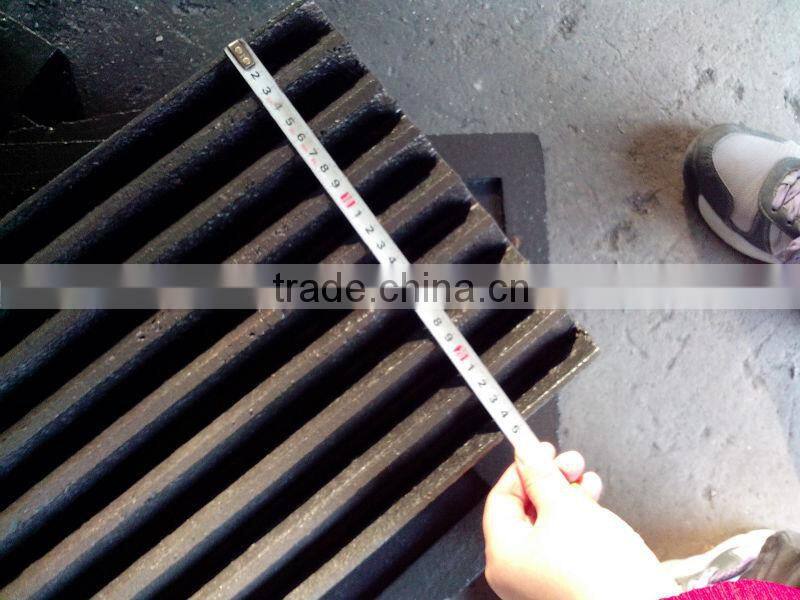

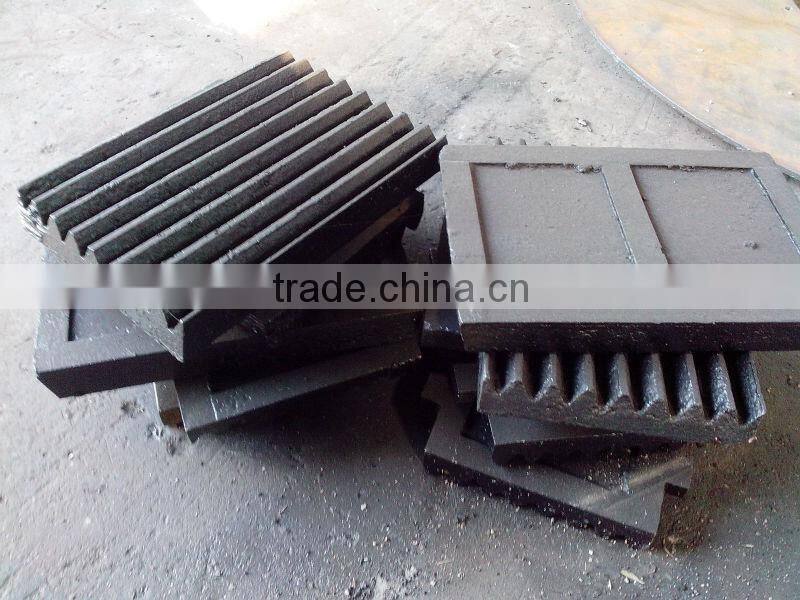

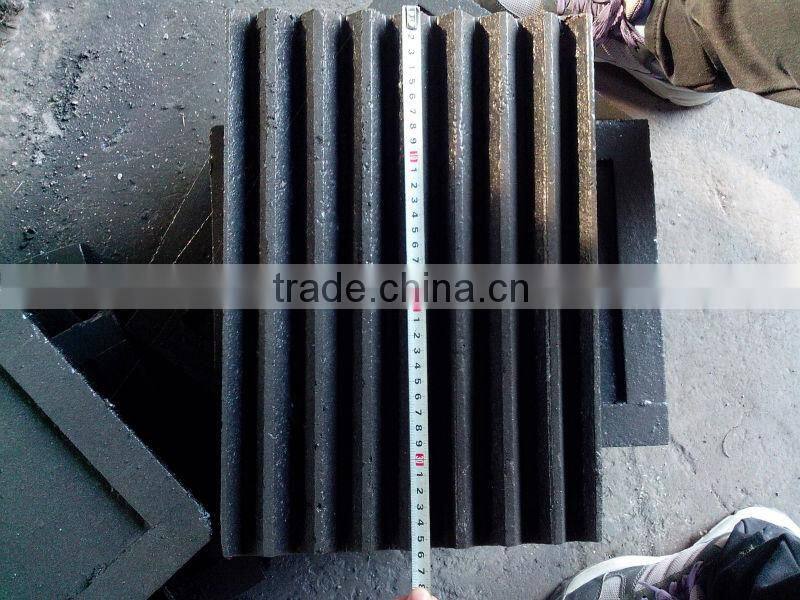

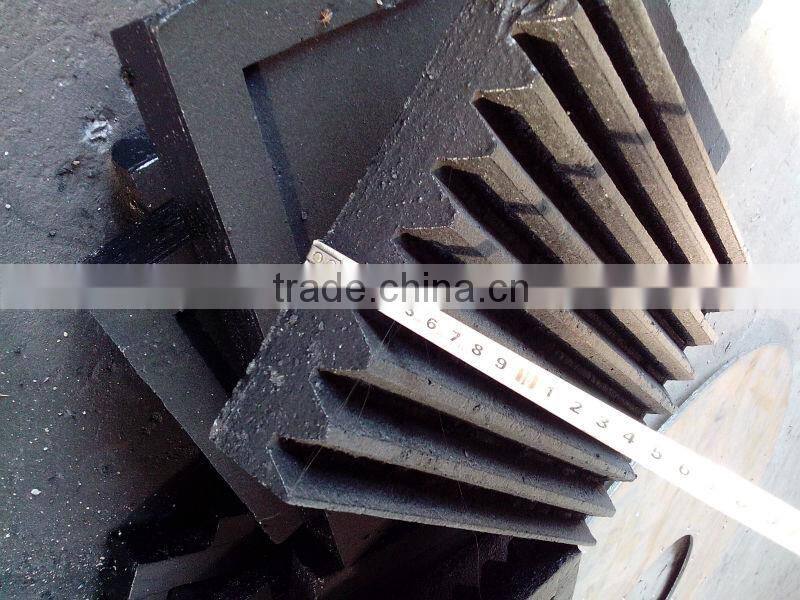

♥ PE150*250 Jaw Crusher's Parts :

If you are interested in our product, please contact me, welcome to visit our factory !
