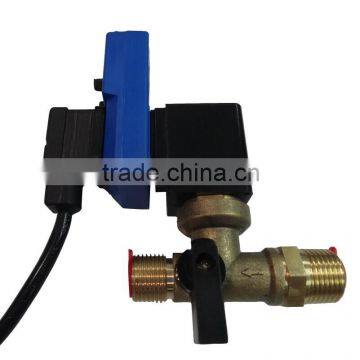

Automatic Condensate Drains Tank Drain

Standard or Nonstandard	Standard		Structure	Ball
Pressure	Medium Pressure		Power	Solenoid
Material	Brass		Temperature of Media	Medium Temperature
Media	Water		Place of Origin	Jiangsu, China

Specifications

Ball valve used as manual tank or filter drain
Solid state adjustable with test button
Valve design allo

Tank Drain Features:



•          Built in strainer
•          1/4 turn ball valve
•          Dual size inlet
•          Large 4mm internal orifice
•          Internal armature and shaft made from stainless steel
•          Unique Mounting system
•          Dual internal drain ports
•          Ball valve used as manual tank or filter drain
•          Solid state adjustable with test button
•          Valve design allows for disassembly



Tank Drain Specifications:



•          Timer: Solid-state construction
•          Status Indication: Power "ON"
•          Valve"OPEN"
•          Internal Time: 0.5 to 45 min. (as required)
•          Discharge Time: 0.5 to 10 sec. (as required)
•          Electrical Connection: DIN 46242
•          Connector: 4-position connector
•          Coil: 110/115 volt AC(standard)
•          Available 12 volt/24 volt DC, 220/230 volt AC for overseas installations
•          Insulation: Class H 180°C (350°F)
•          Protection: IP65 including connector
•          Conforms to NEMA 4 std.
•          Temperature Range: -20°C (-4F) to +150°C (300°F)
•          Standard Voltages: 220/240V, 50Hz 115V, 60Hz
•          Valve: 2-wy normally closed
•          Pressure Range: 0 to 16 bar (230 psi g
•          Temperature Range: Ambient: -10°C (14°F) to +50°C (120°F)
•          Fluid: -10°C (14°F) to +140°C (285°F)
•          Lubrication: Not required
•          Strainer: Stainless steel screen ON/OFF control for self-cleaning
•          Media: Air, gases, water, oil etc.
•          Construction Materials: Tube/plunger - AISI 300/400 Spring - AISI 18/8
•          Body: Brass
•          Seal Material: Buna
•          Typical Installations: Compressor Source
•          Receiver Outlet
•          Filter Outlet
