EVI Water Heat Pump
- SHUNDE GUANGZHOU
- T/T
You May Like
-
EVI Air to Water Heat Pump (3.5KW-140KW) Model 3.5KW
-
EVI Air to Water Heat Pump (3.5KW-140KW) Model 6.0kw
-
EVI Air to Water Heat Pump (3.5KW-140KW) Model 6.5 kw
-
EVI Air to Water Heat Pump (3.5KW-140KW) Model 7 kw
-
EVI Air to Water Heat Pump (3.5KW-140KW) Model 7.5 kw
-
EVI Air to Water Heat Pump (3.5KW-140KW) Model 8kw
Product Details
| Type | Other, Air Source Heat Pump, EVI water heat pump | Installation | Freestanding | |
| Storage / Tankless | Storage | Housing Material | Stainless Steel | |
| Use | Other, bathroom,floor heating,space cooling | Certification | CB, CE, CSA, EMC, Other, CB, CE, CSA, EMC, RoHS, ETL,SAA,C-TICK | |
| Place of Origin | China | Brand Name | MACON | |

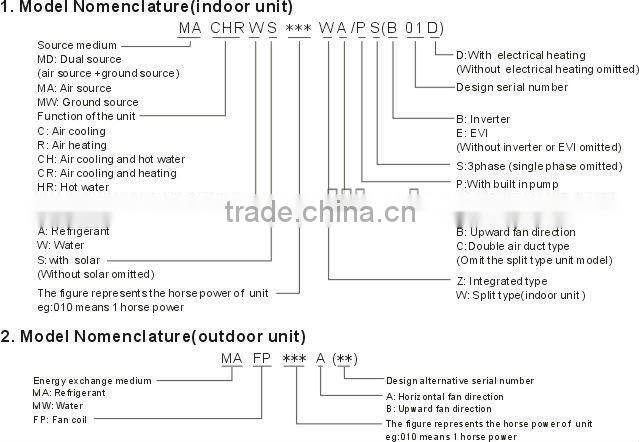

| Model Number | MACHEW060W/S(BE01D),MAFP050A |
Product Description

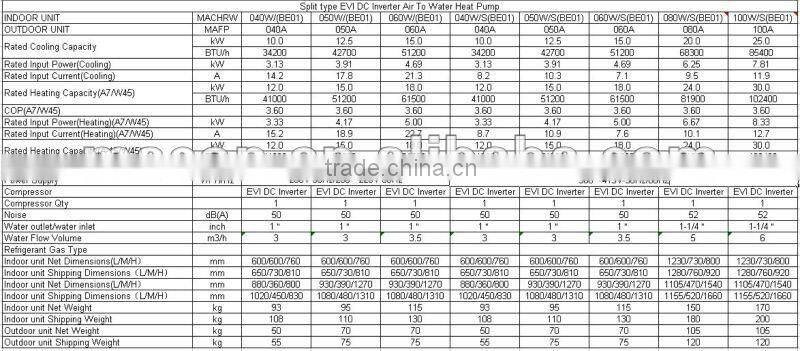

Specifications
EVI water heat pump:1.R410a/R407c gas
2.Scroll compressor
3.Auto defrosting
4.OEM
EVI water heat pump :
EVI heat pump fertures:
1.Compressor
Super heating EVI DC inverter scroll compressor.

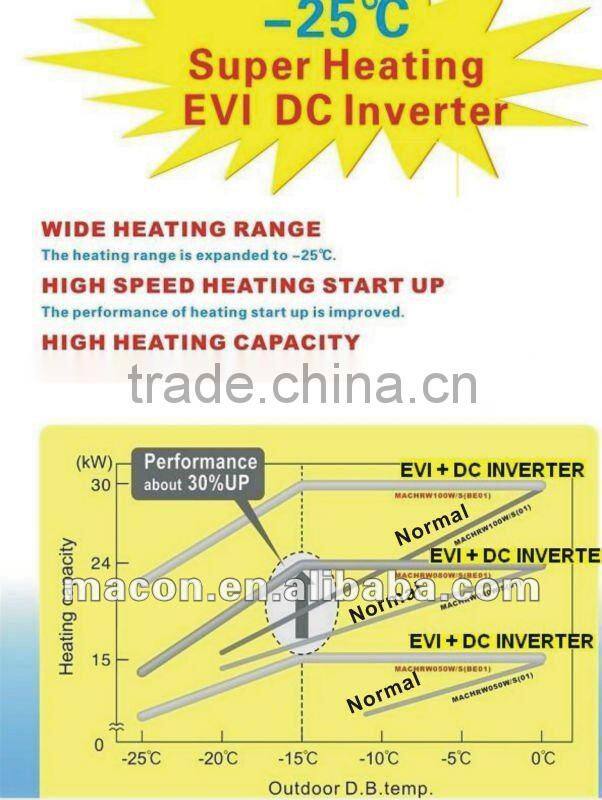

2.Wide heating ranger
The heating ranger is expanded to -25°C
3.High speed heating start up
The performance of heating start up is improved.
4.High heating capacity
Industry-first injection circuit is equipped,which enable to keep the equal capacity with the even when outside temperature is -15 °C.but, The traditional heat pump can only reach 60% of the rated heating capacity output.
5.water heat exchanger
Water exchanger equipped with high efficiency Plate heat exchanger.
6. Evaporator
Evaporator is larger 30% than usual size to keep its high efficiency.
7. refrigerant
R410a refrigerant.
8. Refrigerant throttle control
electronical expansion valve
9. Defrost control
The optimization of the defrost mode, reduce the defrosting time and number of times, improve the heating efficiency.
10. Auxiliary electric heating control
Electrical heating element built in indoor unit as back up for emergency.
11. Operation control
LCD touch- screen controller.
12.heat pump control
Standard/adjustable heat curve
This is EVI inverter design for 60oC higher water temperature, especially for the extremely cold area, like -25oC ambient temperature; Its core philosophy is to solve the house heating during the cold climate in Winter and Spring and make room cooling in hot Summer and Autumn. This kind of design can do not only heating and cooling but also can provide sanitary hot water all over the year because the second circle heating can use 60oC hot water to heat the 10~15 oC tap water to 55 ~60 oC sanitary water. So it is realized to offer heating,cooling and sanitary hot water with only one heat pump.
And because the DC inverter technology,the frequency will change as the ambient temperature and water temperature, heat pump will work as actual heat/cool demand,more energy-saving.
The heat pump performance has been improved greatly as new designed EVI inverter compressor from the United States Emerson Ltd and with MACON specially designed economizer and high efficiency heat transfer module.With six months of performance testing and validation in the different conditions of Multifunctions Lab.,the EVI inverter Series Heat Pump has reached the COP=4.2 for floor heating mode (EN14511-2007) and it is available for 60 oC hot water output and safely working in -25 oC ambient temperature.
1. Higher Water Temperature Output up to 60oC
2. Safely Working Temperature Down to: -25oC
3. High Efficiency COP up to 4.2 (EN14511-2007)
4. Three in One : Heating, Cooling and Sanitary Hot Water


CERTIFICATIONS
CE, CB, EC, ETL, CETL, C-TICK, WATER MARK, STANDARD MARK, UL, SABS, SANS, SAA, SASO, VDE, RoHS, REACH,EN14511-2:2011, EN14511-2:2007, NFPAC, EURO-VENT, ENERGY-STAR, DOE,ISO9001, ISO14001, Six Sigma, Lean Production and Management
MACON Manufacture:

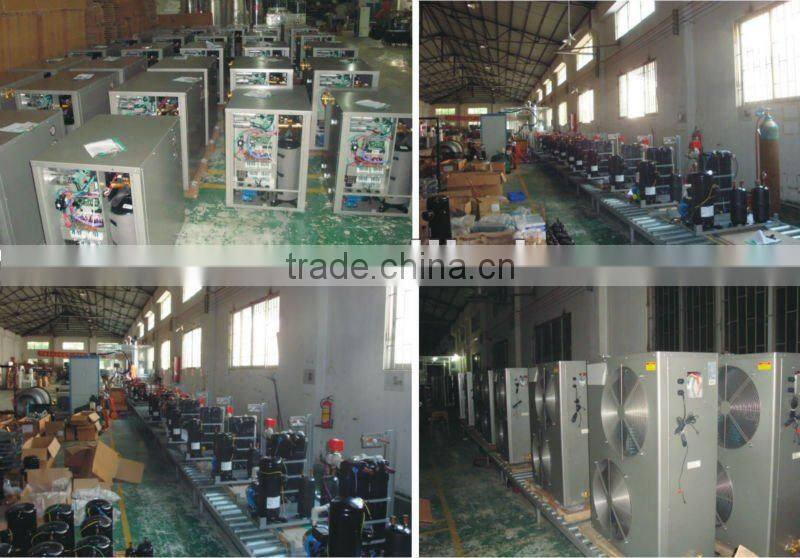

1.MACON professional Standardzing Manufacturing Process:

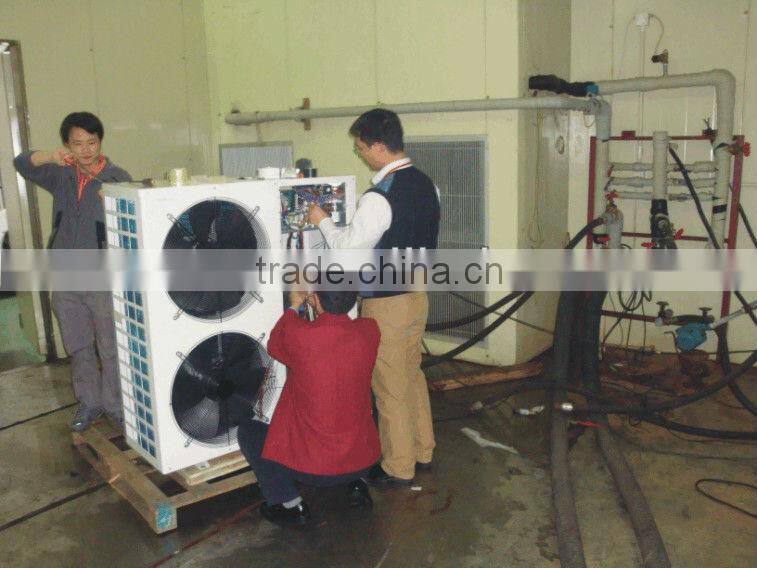

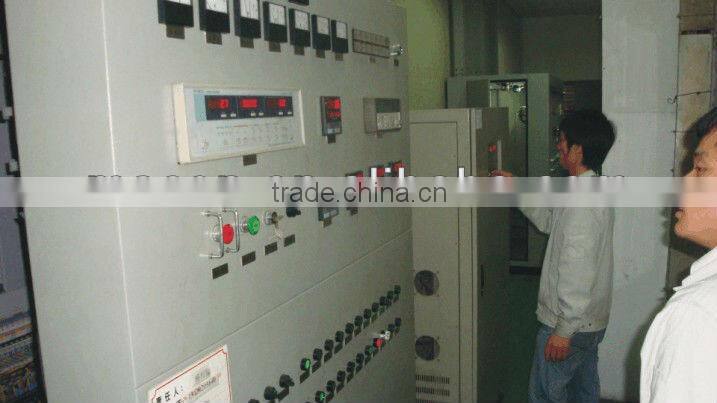

2. MACON professional multi-function test room :
Package
The qualified heat pump is packaged by especial designed cartoon or fumigation wooden frame before send to our warehouse, avoid hitting.

Services:
1. 20 years professional experience technology support.
2.Supply OEM service for customers.
3. Produce heat pump according to customer's special demands.
4.Supply free spare parts according to order quantity.
5. Long warranty period
6. 24 hours standby service.
MACON Exhibitions
Recently we attended the following Exhibition.
MCE Exhibition Milan of Italy (Mar.23-27th,2010)
CRH Exhibiton Beijing of China (Apr.7-9th,2010)
FRIGAIR Exhibition Johannesburg of South Africa (Sep.8-11th,2010)
CLIMATIZACION 2011 of Madrid --Spain(2011.3.1-4).
FEBRAVA 2011 of--Sao Paulo--Brasil;(2011.9.20-23)
FIHAV-HAVANA INTERNATIONAL FAIR 2011(2011.10.31-11.05)
BIG 5
Chicago House heating&cooling Exhibiton of USA(Jan.05-08,2012)
MCE Exhibition Milan of Italy (Mar.27-30th,2012)
CRH Exhibiton Beijing of China (Apr.11-13th,2012)
Chillventa 2012 of Nürnberg, Germany (Oct. 09-11th, 2012)
Bombay Convention and Exhibition,India(Dec.20-22th,2012)
Spanish Pool/spa equipment Exhibition,Spain(Oct.15-18,2013)
