Home > Products > EVI DC Inverter Heat Pump > 23.2Kw Monobloc EVI DC Inverter Heat Pump Hot Selling

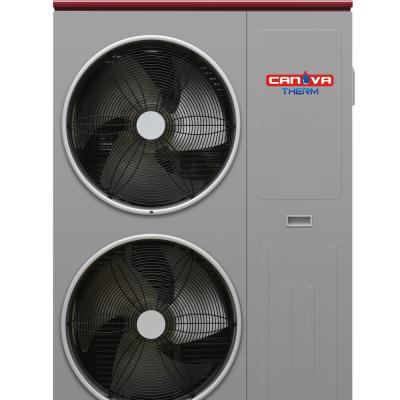

23.2Kw Monobloc EVI DC Inverter Heat Pump Hot Selling

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Port Guangzhou/Shenzhen
Payment TermsT/T
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Certification	CE, ISO9001, CCC, ROHS, Other, TUV	Application	Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons, Other
Heat Source	Air-source	Energy Efficiency Grade	One
Heat Temperature	50-70°C	Work Environment	Low-temperature Heat Pump
Heating Type	Multi-power Heat	Refrigerent	R32
Compressor	Panasonic DC Inverter	Power supply	380V~415V/3PH
Transport Package	Plywood case	Specification	23.2KW
Trademark	Canova	Origin	Guangzhou, China

Product Description

With the advanced DC inverter technology, CANOVA inverter air to water heat pump can save you 65% heating cost compare with the traditional heating device like gas/fuel boiler and electrical heater. It works perfectly with the radiator and floor heater to provide you a comfortable living environment even in very cold winter. It is one of the best heating devices available today.

Model			KFV240-B	KFV480-B	KFV480-B/3	KFV640-B
Max Heating Capacity		KW	12.6	23	23.2	28.5
Heating Capacity Range		KW	4.2~12.6	8~23	8.1~23.2	10~28.5
Heating (A7/W35)	Capacity	KW	10.5	19	19.3	25
	Input Power	KW	2.28	4.04	4.02	5.32
	Current	A	10.9	19.3	7.2	9.5
	COP		4.6	4.7	4.8	4.7
Heating (A7/W45)	Capacity	KW	10.3	18.2	18.6	24.3
	Input Power	KW	2.63	4.63	4.72	6.15
	Current	A	12.6	22.2	8.4	11.0
	COP		3.92	3.93	3.94	3.95
Cooling (A35/W7)	Capacity	KW	7.8	15.2	15.5	20.5
	Input Power	KW	2.68	5.21	5.22	6.95
	Current	A	12.8	24.9	9.3	12.4
	EER		2.91	2.92	2.97	2.95
Power Supply			220V~230V/1PH		380V~415V/3PH
Frequency Range		Hz	30-85	30-85	30-85	30-85
ERP (35℃)			A+++	A+++	A+++	A+++
ERP (55℃)			A++	A++	A++	A++
Heating output water temp		℃	25~60
Cooling output water temp		℃	5~20
Refrigerant			R32 / R410A
Controller			LCD Wire Controller
Compressor	Brand		Panasonic
Compressor	Type		DC Inverter Twin Rotary
Fan motor	Type		DC Inverter
Fan motor	PCS		1	2	2	2
Evaporator	Type		Hydrophilic Aluminum Fin Heat Exchanger
Water side heat exhanger	Brand		SWEP
	Type		Plate Heat Exchanger
	Pressur Drop	kPa	15	25	25	30
Throttle unit			Electronic Expantion Valve
Water pump (Built-in)	Brand		Grundfos
	Type		DC Inverter
	Head	m	8	8	8	10
Ambient Temp range		℃	-30~45
Electric heater (Built- in)		Kw	2	3	3	3
Expansion tank (Built- in)		L	3	5	5	5
Water flow		m3/h	1.8	3.3	3.3	4.3
Pipe size			DN25	DN32	DN32	DN32
Noise		dB(A)	≤58	≤63	≤63	≤65
Dimension		mm	1160390860	10603901360	10603901360	10603901560
Weight		kg	90	140	145	170

Heating test condition 1: Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=30℃/35℃

Heating test condition 2: Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=40℃/45℃

Cooling test condition : Ambient temp.(DB/WB)=35℃/24℃, Inlet/Outlet water temp.=12℃/7℃

Heating test condition 1: Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=30℃/35℃

Heating test condition 2: Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=40℃/45℃

Cooling test condition : Ambient temp.(DB/WB)=35℃/24℃, Inlet/Outlet water temp.=12℃/7℃

Features

Hybrid solar connection(optional)
Low starting current
High working efficiency
Reliable working
Easy and safe operation with multi-protection
Intelligent controller and adjustment by quick mind microprocessor
