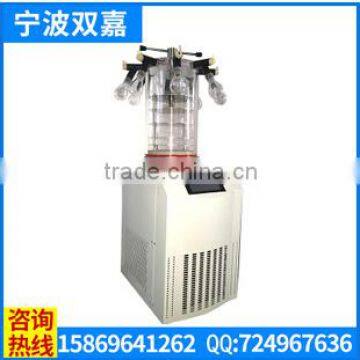

SJIA-12N mini laboratory lyophilizer 4kgs/24hr vertical type freeze dryer Manifold&Vial Stoppering type

FOB Price

USD $1,000 - $2,600 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Freeze Drying Equipment
Place of Origin	China	Brand Name	SJIALAB
Model Number	JIA-12N	Voltage	220V
Dimension(LWH)	500 x400 x650 mm	Weight	100kgs
Certification	ce	Warranty	one year
After-sales Service Provided	No overseas service provided

laboratory lyophilizer 4kgs/24hr vertical type freeze dryer Manifold&Vial Stoppering type

SJIA-12N freeze dryer is a cost effective and high performance vertical type freeze dryers.

Microprocessor controls.
4 Liters in 24hours ice capacity.
Internal condenser coil-304 or 316 stainless steel.
-50C or -80C condenser lowest temperature.
304 or 316 stainless construction.
CFC-free refrigeration.(optional for customer’s request refrigeration:R507,R410A, etc.)
Heating element to defrost available for optional.
Transparent Acrylic Drum drying chamber for user to observe the drying process.

7’’ LCD touch control ,LCD display

For water based samples, the -50C condenser is the perfect choice with effective cost.

For samples containing solvents or with low eutectic points, the -80 C condenser provides maximum performance.

For labs that need quick turn-around, Heating element to defrost available.

Main Technical Parameters:

Parameters Model	SJIA-10N (Desktop)	SJIA-12N(Vertical)	SJIA-18N	SJIA-18SN heating type
No-load temperature	<-50°C,<-80°C optional	<-50°C,<-80°C optional	<-50°C,<-80°C optional	<-50°C,<-80°C optional
No-load freeze area	0.07-0.12m2	0.09-0.18m2	0.09-0.27m2	0.09-0.27m2
Plate load materials	0.7-1.2L	0.7-2L	2-3.5L	2-3.5L
Ability to capture water	3Kg/24h	4Kg/24h	6Kg/24h	6Kg/24h
Vaccum	<10Pa	<10Pa	<10Pa	<10Pa
Dimension	500 x 395 x 370+420(drum) mm	500 × 400 × (650 +420 drum) mm	830 x 532 x 900+420(drum)	830 x 532 x 900+420(drum)
Material Tray Specifications	Φ200mm four-layered(common) Φ200mm three-layered(with cover)	Φ200mm four-layered 70mm(common) Φ200mm six-layered 50mm(common) Φ200mm three-layered(with cover)	Φ240mm four-layered 70mm(common) Φ240mm six-layered 50mm(common) Optional: Φ200mm three-layered(with coverd)	Φ240mm four-layered 70mm(common) Φ240mm six-layered 50mm(common) optional Φ200mm three-layered (with cover)
Consuming wattage	1000VA	1000VA	1300VA	1300VA
Voltage	220V 50HZ /110V 60Hz	220V 50HZ /110V 60Hz	220V 50HZ /110V 60Hz	220V 50HZ /110V 60Hz

The SJIA-12N vertical top freeze dryer can build with 5 common application different accessories.

The versatile freeze dryer can meet customer’s various application.

	basic type Transparent Acrylic Drum chamber with rack and 4xΦ200mm trays. The trays liquid load 1.2L; Drying area: 0.12 square meter
	Acrylic Drum with Multi-manifolds: 8-Port Acrylic Drum Manifold.transparent drum acrylic chamber make it clear to watch the process of drying.Manifold sealing gaskets are also supplied with this accessory. The trays liquid load 1.2L; Drying area: 0.12 square meter
	Top-stoper down type: Vial Stoppering Shelf :samples in vials can be processed and stoppered under vacuum. The unit has movable ss 3x Φ200mm shelves inside acrylic vacuum chamber. The trays liquid load 0.94L;Drying area: 0.094 square meter;
	8 - Port Acrylic Drum Manifold&Vial Stoppering Shelf: The unit has movable ss 3x Φ200mm shelves inside acrylic vacuum chamber. The trays liquid load 0.94L;Drying area: 0.094 square meter;
	(24 or more ports) 24-Port Column Manifold T type is useful for drying of small volume of liquids in flasks/Ampoules. It is provided with quick seal valves for holding flasks up to 1 litre capacity. Manifold sealing gaskets and cone connectors are also supplied with this accessory.
